2mag atexMIXcontrol besturing voor atexMIXdrive1 zone 1
Art.Nr.
L131999200
2mag atexMIXcontrol besturing voor atexMIXdrive1 zone 1
Art.Nr.
L131999200
Voor aansturing van maximaal 1 atexMIXdrive1
Geschikt voor gebruik in cleanrooms en ATEX zone 2
Gecertificeerd volgens ATEX II 3G Ex nAC IIC T6
Afmetingen (bxdxh) 360 x 460 x 200 mm
Gewicht circa 15 kg
Levering ZONDER atexMIXdrive1
| Merk | 2 mag |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
2mag atexMIXcontrol bestuuring voor atexMIXdrive1 zone 1

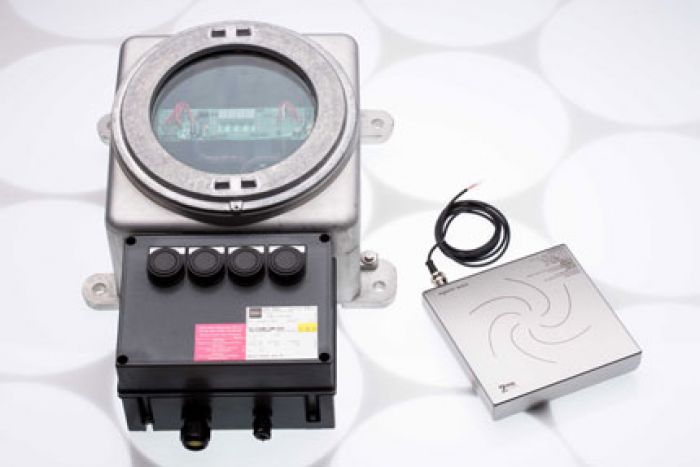

Explosion protected control unit for the connection of 1 stirring drive atexMIXdrive.
20 watts stirring power, speed range from 100 up to 2,000 rpm, jerk-free stirring even at low speeds, 4-step power setting (25/50/75/100%).
Clear digital display for speed- and power settings, SoftStart for reliable catching/centering and safe accelerating of the stirring bar.
QuickSet for quick setting of start- and maximum speed, autom atic memory function to save the last settings, explosion protected housing, operation temperature up to +40°C, certified according to ATEX II 2G Ex de IIC T6 Gb.
2 years warranty on material and manufacturing, developed and made in Germany.
| Type | atexMIXcontrol |
| Speed range | 100 - 2,000 rpm |
| Stirring power (max.) | 20 W |
| Power setting | 25/50/75/100% (4-steps) |
| Housing material | aluminium / plastics |
| Permitted operation conditions | 0 up to +40 °C (at 80% humidity) |
| Electrical data | 100-240 V / 50-60 Hz / 1,5 A |
| Dimensions (WxDxH) | 360 x 460 x 200 mm |
| Weight (gross) | approx. 15 kg |
| Protection category | IP65 |
| Ex-mark | ATEX II 2G Ex de IIC T6 Gb |
| Certificate of conformity | KEMA 03 ATEX 2045 |
