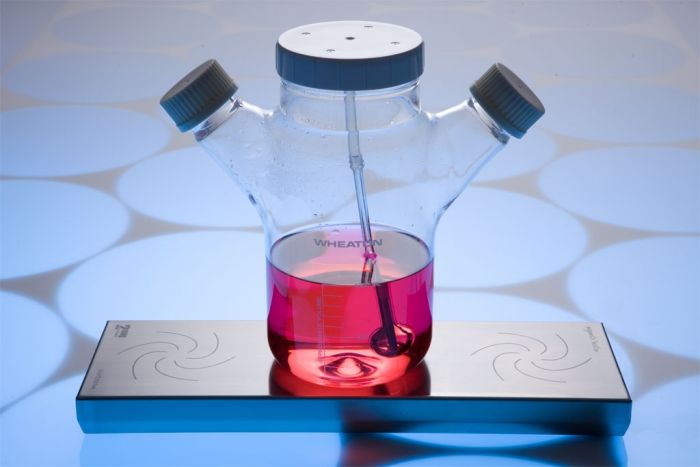

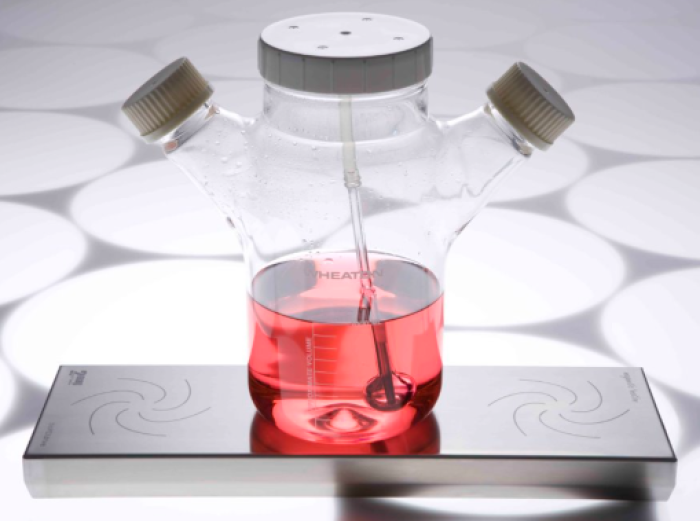

2mag BioMIXdrive 3 magneetroerder z. verwarming 3x5 liter
Art.Nr.
L131980003
2mag BioMIXdrive 3 magneetroerder z. verwarming 3x5 liter
Art.Nr.
L131980003
RVS uitvoering, IP68 waterdicht, stofdicht en kiemdicht
Geschikt voor roeren van celsuspensies in CO2 incubatoren
Geschikt voor maximaal 3x 5.000 ml liter (H2O)
Afstand tussen roerposities 140 mm
Roersnelheid 5 - 250 rpm
Omgevingstemperatuur -10°C tot +50°C (bij 100% luchtvochtigheid)
Ook onder te dompelen in water temperatuur tot +50°C
Afmetingen (bxdxh) 130 x 410 x 38 mm
Gewicht circa 3.5 kg
Noodzakelijk als bestuuring BioMIXcontrol; NIET inbegrepen in levering
| Merk | 2 mag |
|---|---|
| Max. volume per roerpositie (H2O) | 5 |
| Min. RPM | 50 |
| Max. RPM | 250 |
2mag BioMIXdrive 34 magneetroerder z. verwarming 3x5 liter
Warming- and maintenance-free magnetic stirrer with
3 stirring positions, large surface, also suitable for viscous culture media.
Maintenance-free 2mag-stepper-motor-drive for extremely slow and 100% jerk-free and gentle mixing of cell cultures, extended speed range from 5 up to 250 rpm, jerk-free, even and smooth stirring also at slow speeds, suitable for culture flasks with spinning propeller- and spinning ball systems.
Fully encapsulated and hermetically closed stainless steel housing, IP68, water-, dust- and germ-proof, extremely robust construction and performance, easy to clean and maximum firm, submersible in water baths, designed for the warming-free long term operation in CO2-incubators, individual measurements on request.
Interfaces 0-10 volts, calibrateable 4-20 mA for process control systems, RS232, USB, Ethernet, rotation monitoring and firmware adaptions on request.
Please order control unit separately.
Technical data
| Type | bioMIXdrive 3 | ||
| Stirring points | 3 | ||
| Stirring point distance | 140 mm | ||
| Stirring volume / stirring point | 5 - 5,000 ml | ||
| Speed range | 5 - 250 rpm | ||
| Stirring power / stirring point | 5 W | ||
| Material housing | Stainless steel | ||
| Permitted operation conditions | -10 °C up to +50 °C (at 100% humidity) | ||
| Operating voltage | 48 VDC | ||
| Dimensions (WxDxH) | 130 x 410 x 38 mm | ||
| Protection category | IP68 | ||
| Weight (gross) | approx. 3.5 kg | ||
