Voor maximaal 40 liter water
Snelheid van 60 tot 2000 rpm
Voltage: 230 V
Afmetingen (lxbxh) 225 x 280 x 35 mm
Gewicht: 9,3 kg
Merk | 2 mag |
---|---|
Max. volume per roerpositie (H2O) | 40 |
Min. RPM | 60 |
Max. RPM | 2.000 |

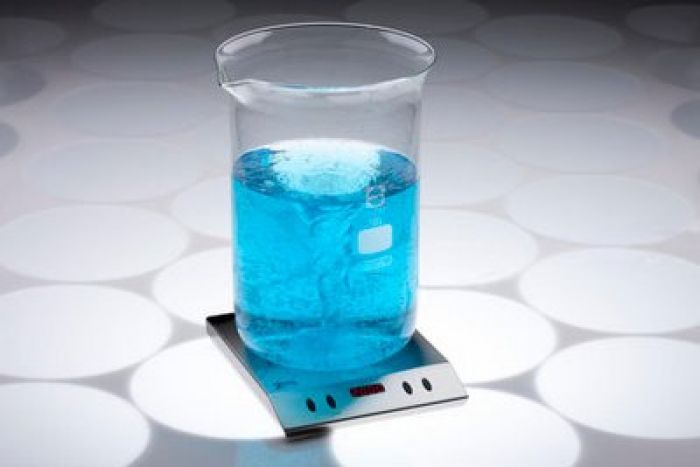

2mag 30201 Mix 1 XL RVS magneetroerders
- Magneetroeders in RVS uitvoering (IP68: waterdicht, stofdicht en kiem/bacterien dicht)
- Enkelvoudig en meervoudig tot een volume van 1000 liter
- Uitvoeringen met gescheiden besturing (MIXdrive + MIXcontrol): geschikt voor gebruik in een water/oliebad, CO2 incubator of stoof bij temperaturen van -10°C tot +50°C (bij 100% luchtvochtigheid)
- Met en zonder verwarming met temperatuurbereik tot +200°C / ondergedompeld in water/oliebad 50°C(MIXdrive basic) en 95°C (MIXdrive HT)
- Speciale ATEX & cleanroom uitvoeringen
Informatie van 2mag website
Ultra flat, strong magnetic stirrer with large set-up area and fully automatic stirring bar monitoring mixWatch, up to 40 litres stirring volume, also suitable for highly viscous media, very strong magnetic coupling, therefore predestined for magnetic power transmission over wide distances or for thick vessel bottoms.
Maintenance-free 2mag-motor-drive with large speed range from 60 up to 2,000 rpm, fully encapsulated and tight stainless steel housing (IP64), extremely robust construction and performance, easy to clean and firm.
Integrated controller with strong 20 watts stirring power, 4-step power setting for high power with regard to large and viscous stirring volumes and reduced power for the warming-free continuous operation, SoftStart-function (adjustable, 4 steps) for reliable catching/centering and safe accelerating of the stirring bar at different volumes and viscosities, adjustable interval times for automated restart of the stirrer after max. 240 seconds.
Digital display for speed-, power-, SoftStart- and interval setting, QuickSet for quick setting of start and maximum speed, QuickStop-function against after-run and glass breakage, storage of last function status when turning off.
Type | MIX 1 XL |
Stirring points | 1 |
Stirring volume/stirring point | 1 - 40 litres |
Speed range | 60 - 2,000 rpm |
Power setting | 5/10/15/20 W (4-step) |
Acceleration | variable, 20/30/60/120 s |
Interval | variable, 0 - 240 s (2-step) |
Material housing | Stainless steel |
Operation conditions | -10 up to+50 °C (at 95% humidity) |
Electrical data | 100-240 V / 50-60 Hz / 1.5 A |
Dimensions (WxDxH) | 225 x 280 x 35 mm |
Protection category | IP64 |
Weight (gross) | approx. 4.0 kg |
