2mag Mixdrive 1 XL RVS magneetroerder zonder verwarming 40l
Art.Nr.
L131940601

2mag Mixdrive 1 XL RVS magneetroerder zonder verwarming 40l

Art.Nr.
L131940601
RVS magneetroerder zonder verwarming 1 posities
Voor 1 x 40 liter
Snelheid instelbaar van 60 tot 2000 rpm
Afmetingen (lxbxh) 225 x 225 x 38 mm
Voltage: 230 V
 Gewicht circa 3,4 kg
Besturingsunit MixControl XL; NIET in levering inbegrepen
Bekijk alle specificaties
Specificaties
Specificaties
Merk 2 mag
Max. volume per roerpositie (H2O) 40
Min. RPM 60
Max. RPM 2.000
Productbeschrijving

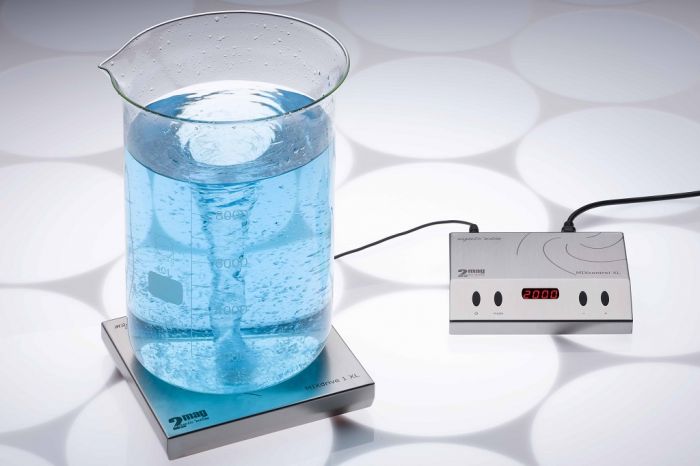

2mag Mix drive 1 XL RVS magneetroerder zonder verwarming 40 lilter

Ultra flat, compact and strong magnetic stirrer with fully automatic stirring bar monitoring mixWATCH, up to 40 litres stirring volume, also suitable for highly viscous media, temperature resistant up to +150°C, very strong magnetic coupling by SmCo-magnets, therefore predestined for magnetic power transmission over wide distances or for thick vessel bottoms

Maintenance-free 2mag-motor-drive with large speed range from 60 up to 2,000 rpm, IP66, temperature resistant up to +150°C, designed for use in ovens, extremely robust construction and performance, easy to clean and firm.

2mag mixWATCH - Stirring bar monitoring with fully automatic trim of the maximum reachable speed for a reliable and unattended operation of the stirrer.
An absolutely innovation is the integrated contact-free stirring bar control mixWATCH.
In case of the magnetic coupling’s separation between the magnetic stirrer and the stirring bar during the acceleration phase e.g. caused by to high set speed or changing viscosities, the magnetic stirrer will be stopped, the stirring bar centred and started again.

The set speed level will be reduced automatically by 100 rpm to ensure a reliable stirring process.
mixWATCH is ensuring a very high process safety, e.g. with using of closed non-glass vessels or at unattended overnight operation. MIXdrive 1 XL is equipped as standard with mixWATCH.

Type MIXdrive 1 XL
Stirring points 1
Stirring volume / stirring point 1 - 40 litres
Stirring power (max.) 20 W
Material housing Stainless steel
Permitted operation conditions +5 up to +150 °C (at 95% humidity)
Operating voltage 48 VDC
Dimensions (WxDxH) 225 x 225 x 38 mm
Protection category IP66
Weight (gross) approx. 3.4 kg
