2mag MIXdrive 15 HT RVS magneetroerder 15x3 liter
Art.Nr.
L131940215
2mag MIXdrive 15 HT RVS magneetroerder 15x3 liter
Art.Nr.
L131940215
RVS uitvoering, IP68 waterdicht, stofdicht en kiemdicht
Geschikt voor maximaal 15 x 3 liter (H2O)
Toerental 100 - 2000 rpm (afhankelijk van besturing)
Geschikt voor gebruik in water/oliebaden, CO2 incubatoren en ovens
Omgevingstemperatuur -10°C tot +50°C (bij 100% luchtvochtigheid)
Afstand tussen roerposities 65 mm
In ovens te gebruiken tot 200°C
Afmetingen (bxdxh) 245 x 375 x 38 mm
Gewicht circa 9,5 kg
Besturing middels MIXcontrol 40 (RS232), MIXcontrol 20 (RS232) of MIXcontro eco (DinRAil); Besturing NIET inbegrepen in levering
| Merk | 2 mag |
|---|---|
| Max. volume per roerpositie (H2O) | 3 |
| Min. RPM | 100 |
| Max. RPM | 2.000 |

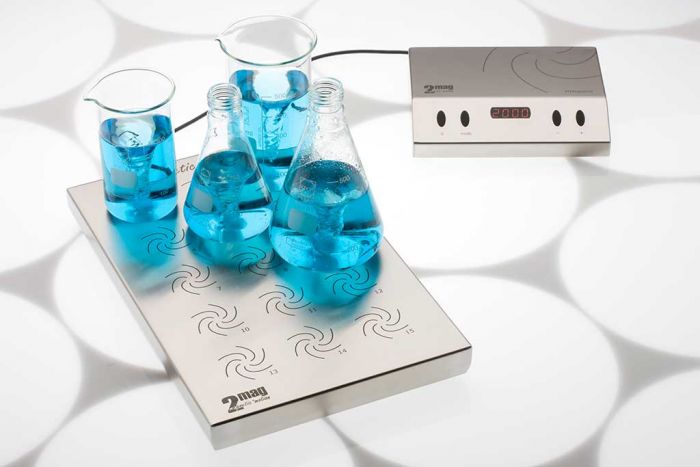

2mag 40215 MIXdrive15 HT RVS magneetroerder
Ultra flat, wear-free magnetic stirrer with 15 stirring positions, suitable for 15 x 250 ml beaker glasses (tall form).
15 stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, power reserves up to 3,000 ml per stirring point, 100% synchronized speeds, jerk-free stirring even at low speeds. Fully encapsulated and hermetically sealed stainless steel housing, IP68, water-, dust-, and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2-incubators and ovens.
Two different temperature areas available:
Basic-version up to +50 °C, HT-version up to +95 °C submerged in water baths and up to +200 °C in ovens, individual dimensions on request.
Please order control unit separately!
| Type | MIXdrive 15 | |
| Stirring points | 15 | |
| Stirring point distance | 65 mm | |
| Stirring volume/stirring point | 1 - 3,000 ml | |
| Stirring power | 40 W | |
| Material housing | Stainless steel | |
| Permitted operation conditions Basic-version | -10 °C up to +50 °C in air, up to +50 °C in water submerged | |
| Permitted operation conditions HT-version | up to +200 °C in air, up to +95 °C in water submerged | |
| Operating voltage | 48 VDC | |
| Dimensions (WxDxH) | 245 x 375 x 38 mm | |
| Protection category | IP68 | |
| Weight (gross) | approx. 9.5 kg | |
