Geschikt voor maximaal 1 liter (H2O)
Toerental 100 - 2000 rpm (afhankelijk van besturing)
Geschikt voor gebruik in water/oliebaden, CO2 incubatoren en ovens
Omgevingstemperatuur -10°C tot +50°C (bij 100% luchtvochtigheid)
In ovens te gebruiken tot 200°C
Ook onder te dompelen in water temperatuur tot +95°C
Afmetingen (bxdxh) 48 x 48 x 18 mm
Gewicht circa 0,25 kg
Besturing middels MIXcontrol eco (DinRAil); besturing NIET inbegrepen in levering
Merk | 2 mag |
---|---|
Max. volume per roerpositie (H2O) | 1 |
Min. RPM | 100 |
Max. RPM | 2.000 |

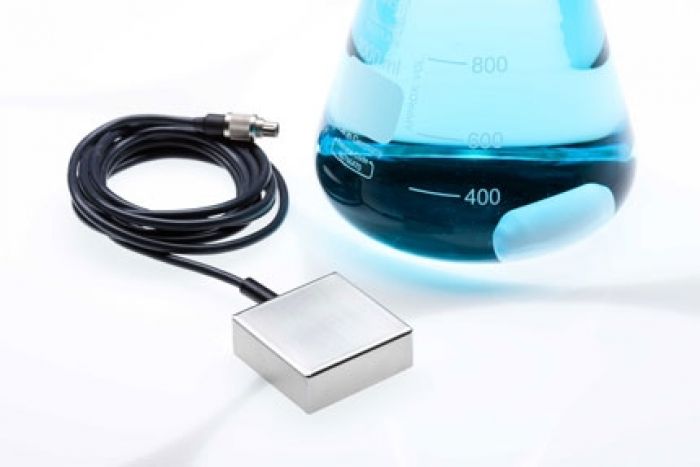

2mag MIXdrive 1XS HT RVS magneetroerder 1 liter dompelbaar
Ultra flat, wear-free magnetic stirrer with 1 stirring position, optimized for stirring volume up to 1,000 ml, ideal size for integration.
1 stirring position, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, jerk-free stirring even at low speeds.
Fully encapsulated and hermetically sealed stainless steel housing, thread M4 integrated in stainless-steel bottom plate (not HT-version), IP68, water-, dust- and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2-incubators and ovens.
Two different temperature areas available:
Basic-version up to +50 °C, HT-version up to +95 °C submerged in water baths and up to +200 °C in ovens, individual dimensions on request.
Please order control unit separately!
Type | MIXdrive 1 XS |
Stirring points | 1 |
Stirring volume / stirring point | 1 - 1,000 ml |
Stirring power (max.) | 10 W |
Material housing | Stainless steel |
Permitted operation conditions Basic-version | -10 °C up to +50 °C in air, up to +50 °C in water submerged |
Permitted operation conditions HT-version | up to +200 °C in air, up to +95 °C in water submerged |
Operating voltage | 48 VDC |
Dimensions (WxDxH) | 48 x 48 x 18 mm |
Protection category | IP68 |
Weight (gross) | approx. 0.25 kg |
