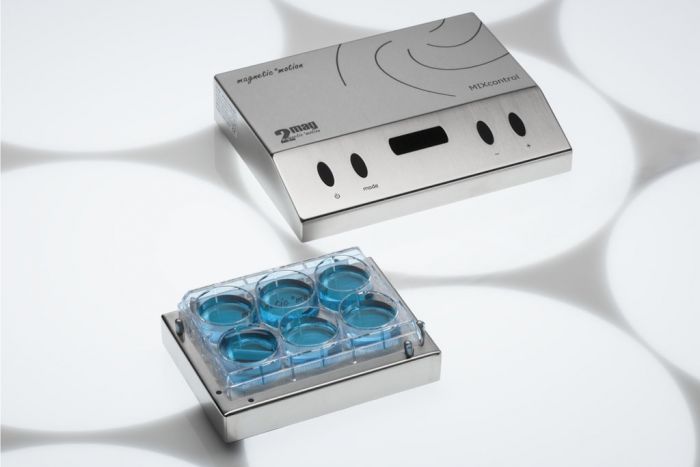

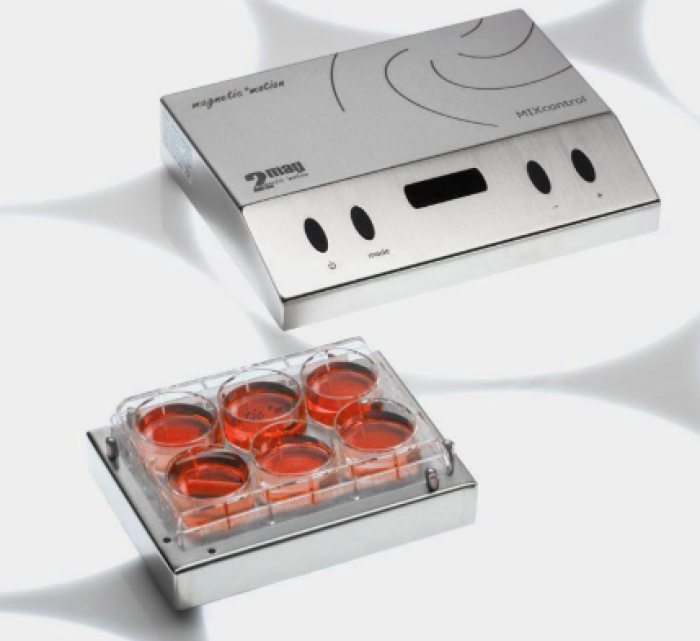

2mag MIXdrive 6 MTP RVS magneetroerder
Art.Nr.
L131943006
2mag MIXdrive 6 MTP RVS magneetroerder
Art.Nr.
L131943006
RVS uitvoering, IP68 waterdicht, stofdicht en kiemdicht
Ideaal geschikt voor gebruik in water/oliebaden, CO2 incubatoren en ovens
Omgevingstemperatuur -10°C tot +50°C (bij 100% luchtvochtigheid)
Geschikt voor Microtiterplaten met 6 posities
Afstanden van de posities 39 mm
Maximaal 20 ml per positie
Ook onder te dompelen in water temperatuur tot +50°C
Afmetingen (bxdxh) 140 x 102 x 26 mm
Gewicht circa 1,3 kg
Bediening middels MIXcontrol eco of Mixcontrol MTP
besturing NIET inbegrepen in levering
| Merk | 2 mag |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
2mag MIXdrive 6 MTP RVS magneetroerder
Microtiter plate stirrers
Designed for reliable mass screenings as well as chemical, biotechnical and medical applications of all kinds, developed for the hard daily lab use and uncompromising continuous operation.Ultra flat, wear-free magnetic stirrer with 6 stirring positions, suitable for 6 well microtiter plates.
6 (2x3) stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, 100% synchronized speeds, jerk-free stirring even at low speeds. Fully encapsulated and hermetically sealed stainless steel housing,
IP68, water-, dust- and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths up to +50°C.
Suitable for the use in CO2 incubators and ovens, removable centering pins, suitable for integration into robots, individual dimensions on request. Please order control unit separately.
Technical data
| Type | MIXdrive 6 MTP | |
| Stirring points | 6 | |
| Stirring point distance | 39 mm | |
| Stirring volume / stirring point (max.) | 20 ml | |
| Stirring power | 10 W | |
| Material housing | Stainless steel | |
| Permitted operation conditions | -10 up to +50 °C in air, up to +50 °C in water submerged | |
| Operating voltage | 48 VDC | |
| Dimensions (WxDxH) | 140 x 102 x 26 mm | |
| Protection category | IP68 | |
| Weight (gross) | approx. 1.3 kg | |
| Order no. | 43006 | |
