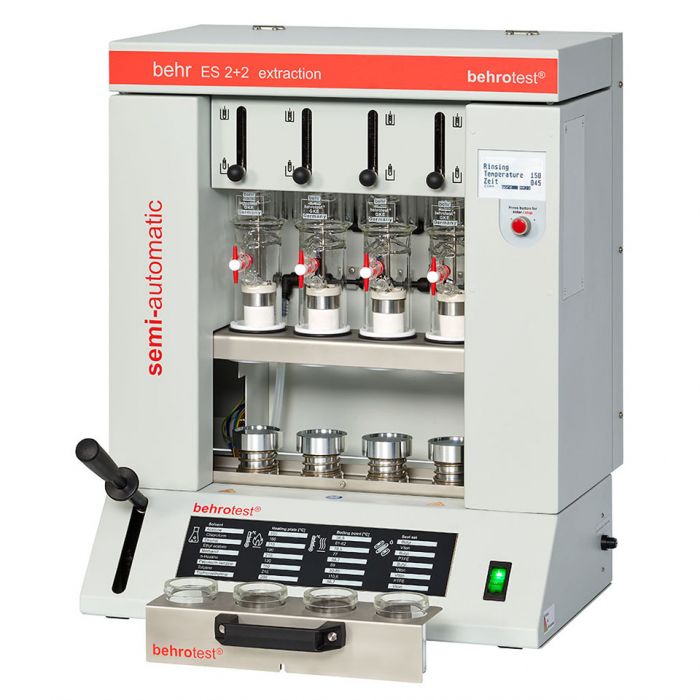

Behr ES2+2 handmatige Randall extractie unit 4 posities
Art.Nr.
L2474B00704623

Behr ES2+2 handmatige Randall extractie unit 4 posities

Art.Nr.
L2474B00704623
Complete hete extractie opstelling volgens Randall
Koken, spoelen en verdampen in 1 apparaat
Afmeting (lxbxh): 550 x 420 x 670 mm
Vermogen: 1440 W
Gewicht: 34 kg
Bekijk alle specificaties

Sorry, dit product kunt u niet toevoegen aan uw winkelwagen.

Vul onderstaande gegevens in en wij maken zo snel mogelijk een concrete offerte voor u op.

Specificaties
Specificaties
Merk Behr
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

Hot extraction according to Randall - the quicker extraction method

Boiling

During the first step, the extraction sleeve is with the sample in the vessel with the boiling extractant, like a tea bag in a cup with hot water. Most of the substance that is to be extracted enters the solution in this step and distributes itself in the solvent.The upper part of the device acts simply like a reflux cooler; the condensate drips into the extraction sleeve and helps bring the substance into the solution.


Rinsing

In a second step, the extraction sleeve is pulled out of the sump. Extract still adheres to it; and there still might be substance in the sample that has not yet dissolved. The condensate from the cooler rinses the extract and little by little dissolves the undissolved parts.If you wish to further process the extract, this means the extraction is complete at this stage. Otherwise, you remove the solvent in a third step.


Evaporation

When evaporating, close the return cock on the cooler, the condensate collects in the lower part of the cooler; you can reuse it for the next extraction. Thanks to the short routes of the device, the sample can be evaporated until it is virtually dry.Optimum safety with screwed extraction units


Multi-position extraction units:

Each extraction sleeve with sample can be moved individually

The user can lower and lift all extraction units with a lever together into the heating chamber

Each heating position with separate temperature adjustment
Alternative for Gerhardt Soxtherm
