BioSan CH-100 koel/verwarmings blokthermostaat met blok CH1

Art.Nr.

L247BS-010410-BAI

Temperatuurbereik van -10 tot 100°C Temeratuur controlle vanaf 30 °C onder kamertemperatuur tot 100 °C Temperatuurstabiliteit ± 0.1 °C Temperatuuruniformiteit bij 37 °C ± 0.1 °C Inclusief inzetblok voor eppjes 20 x 0,5 ml + 12 x 1,5 ml Afmetingen (bxdxh) 240 x 260 x 165 mm Gewicht 3,2 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	BioSan
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

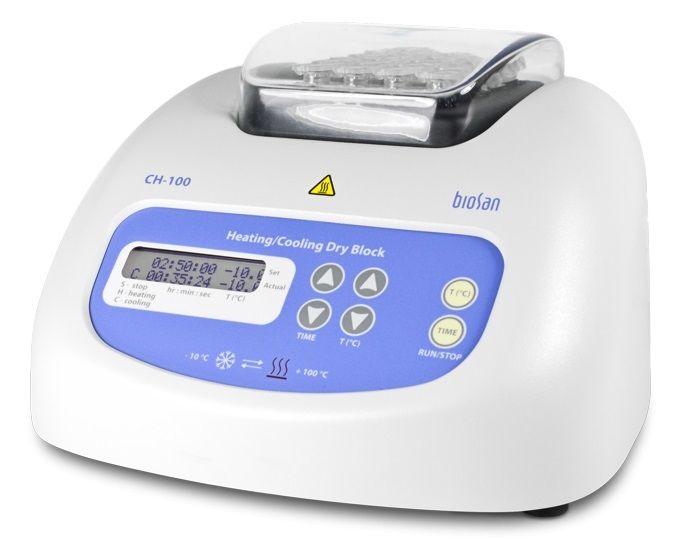

BioSan CH-100 koel/verwarmings blokthermostaat met blok CH-1

CH-100, Heating/Cooling Dry Block

Description

CH-100 is the result of combining two popular Biosan instruments:

Heating Dry block and
Cooling Dry block thermostat

The combined construction of aluminium block and Peltier element module cooled with the forced ventilation radiator provides fast changing of the cooling and heating modes. CH-100 is a very effective instrument of sample preparation during enzyme reactions, hybridization reactions, DNA analysis. Microprocessor controlled time and temperature. Simultaneous indication of set and actual temperature and time.

Blocks (built in) capacity:

1) with CH-1 block for 20 x 0.5 ml + 12 x 1.5 ml microtubes;
2) with CH-2 block for 20 x 1.5 ml microtubes;
3) with CH-3 block for 20 x 2 ml microtubes.

Technical data

Temperature setting range	–10°C ... +100°C
Temperature control range	30°C below ambient ...+100°C
Temperature setting resolution	0.1°C
Temperature stability	±0.1°C
Temperature uniformity at +37°C	±0.1°C
Temperature calibration coefficient range	0.936...1.063 (± 0.063)
Digital time setting	1 min – 96 hrs / non–stop (increment 1 min)
Display	LCD, 2 х 16 signs
Overall dimensions (W×D×H)	240х260х165 mm
Weight	3.2 kg
Input current/power consumption	12 V, 4.4 A / 55 W
External power supply	Input AC 100–240 V 50/60 Hz, Output DC 12 V
