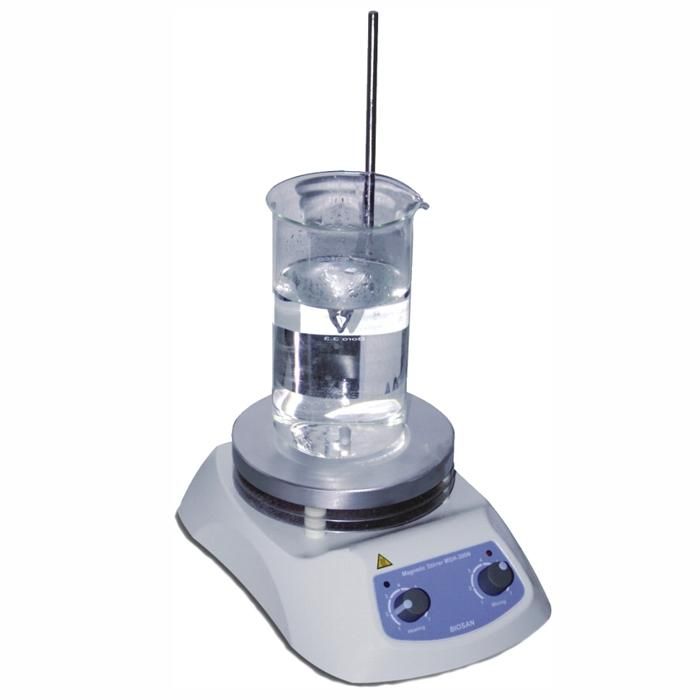

BioSan MSH-300 magneetroerder + verwarming 15 liter 300°C
Art.Nr.
L247BS-010302-OAA

BioSan MSH-300 magneetroerder + verwarming 15 liter 300°C

Art.Nr.
L247BS-010302-OAA
Toerental 250 - 1250 rpm
Temperatuurbereik +30 tot + 300°C
Opzetplaat diameter 160 mm
Kompleet met statiefstang en PTFE roerstaaf 6x25 mm
Afmetingen (bxdxh) 190x270x100 mm
Gewicht 2,9 kg
Bekijk alle specificaties
Specificaties
Specificaties
Merk BioSan
Max. volume per roerpositie (H2O) 15
Min. RPM 250
Max. RPM 1.250
Max. Temperatuur 300
Productbeschrijving

BioSan MSH-300 magneetroerder 15 liter met verwarming

MSH-300 is magnetic stirrer of the new generation. Enclosures of stirrers are made of metal painted with powder enamel chemically  resistant to acids and alkali. The stirrers are equipped with a detachable stand for supporting various sensor elements (temperature, pH and others) inside the stirred liquid.

The stirrers are supplied with a cylinder-shape magnetic stirring bar (6 × 25 mm) for universal use  covered with Teflon.

Units are equipped with the overheat protection providing an automatic switch-off of the device when overheating for the set temperature difference occurs.

Magnetic stirrers with heating can be used for laboratory operations such as organic synthesis, extraction, analysis of oil products, pH-measurements, dialysis, soil suspending, preparing buffer solutions, etc.

Additional protection  disables the heating, if the temperature of plate exceeds the set temperature for 30°C.

Operation temperature range +4°С to +40°С (from  cold rooms to incubators) at maximal relative humidity 80%.

Technical data

Speed control range 250-1250 RPM
Max. stirring volume (water) 15 litres
Plate temperature regulation range +30°C...+330°C
Temperature uniformity on the plate ±3°C
Working plate heating time till 330°C 15 min
Diameter of working plate 160 mm
Working surface material Aluminium alloy
Maximum continuous operation time 24 h
SR-1, attachable stand size Ø 8 × 320 mm
Length of magnetic stirring element 10–50 mm
Max. stirring liquid viscosity up to 1170 mPa.s
Fault indication Outputs sound signal and turns off the heating
Overall dimensions (W×D×H) 190x270x100 mm
Weight 2.9 kg
Nominal operating voltage 230 V; 50/60 Hz or 120 V; 50/60 Hz
Power consumption (Stirring) 8.5 W
Power consumption (Heating) 550 W
