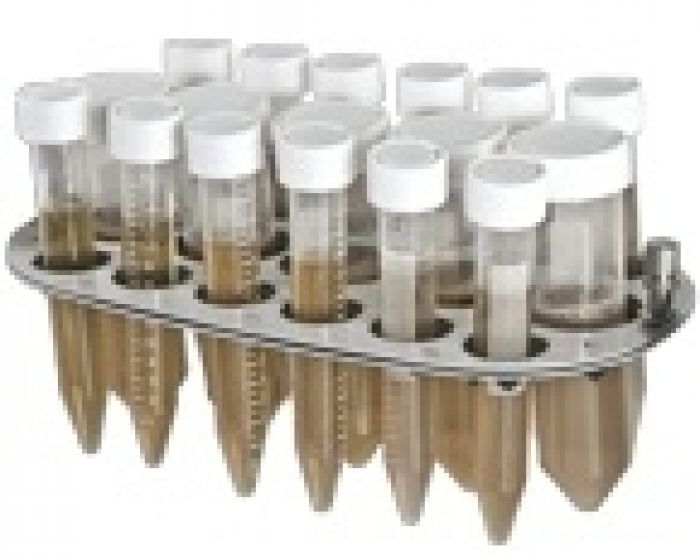

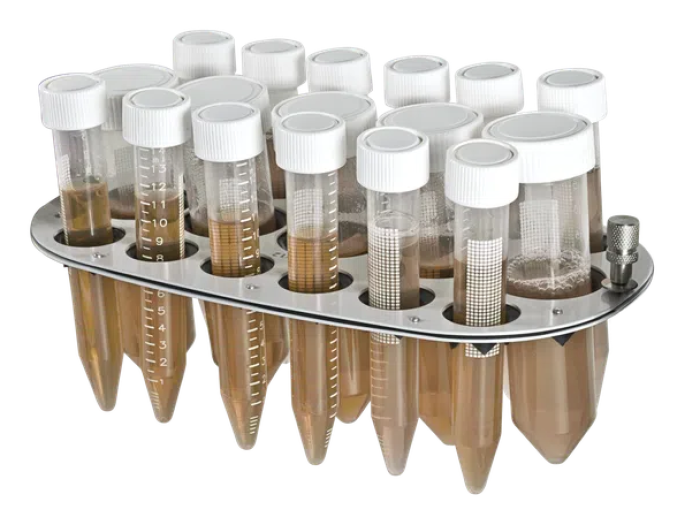

BioSan PRS-5/12 houder voor Multi Bio RS-24
Art.Nr.
L247BS-010117-HK

BioSan PRS-5/12 houder voor Multi Bio RS-24

Art.Nr.
L247BS-010117-HK
Voor Multi Bio RS-24 Platform 5 x 50 ml buizen en 12 x 1,5-15 ml buizen
Bekijk alle specificaties
Specificaties
Specificaties
Merk BioSan
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

BioSan Multi Bio RS-24 programmable rotator

Programmable Rotator Multi Bio RS-24 performs several motion types in one module. Microprocessor control allows performing not only  Vertical rotation (1) of the platform, but also Reciprocal rotation (2) as well as Vibration (3). These three motion types can be performed separately, pairwise and in cycles, periodically repeating the sequence of three motion types. Multi–Rotation option of Biosan instruments  substantially expands possibilities and enhances efficiency of sample preparation for the examined materials and allows adjusting the mixing procedure according to the individual tasks.

Programmable Rotator can be used for variety of applications in modern life science laboratories: for hybridization reactions, cell growing, soft extraction and homogenisation of biological components in solutions, as well  as for reactions of binding and washing of magnetic particles.

Programmable Rotator can be used in cold rooms or incubators, operating at ambient  temperature range +4°C to +40°C. Low voltage external power supply (12 V) provides electrical safety in humid environment.

Specification

Vertical rotation speed control range 1-100 rpm (increment 1 rpm)
Vertical rotation movement overhead, 360°
Vertical rotation time setting range 0 - 250 sec
Reciprocal rotation speed control range 1–100 rpm (increment 1 rpm)
Reciprocal rotation tilt angle range 1° - 90° (increment 1°)
Reciprocal rotation time setting range 0 - 250 sec
Vibro rotation tilt angle range 0° - 5° (increment 1°)
Vibro rotation Pause / Vibro time setting range 0 - 5 sec
Digital time setting 1 min–24 hrs / non–stop (increment 1 min)
Maximum load 0.5 kg
Overall dimensions 365x195x155 mm
Weight 1.8 kg
Input current/power consumption 12 V, 660 mA / 8 W
External power supply Input AC 100–240 V 50/60 Hz; Output DC 12 V
