BioSan TS-100 Thermoschudder microtubes KT tot 100°C
Art.Nr.
L247BS-010120-AAI

BioSan TS-100 Thermoschudder microtubes KT tot 100°C

Art.Nr.
L247BS-010120-AAI
Temperatuurbereik KT+25°C tot +100°C
Orbitale schudbeweging amplitude 2mm
Schudsnelheid 250–1400 rpm
Afmetingen (bxdxh) 205x230x130 mm
Gewicht 4 kg
Levering zonder verwarmingsblokken
Bekijk alle specificaties
Specificaties
Specificaties
Merk BioSan
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

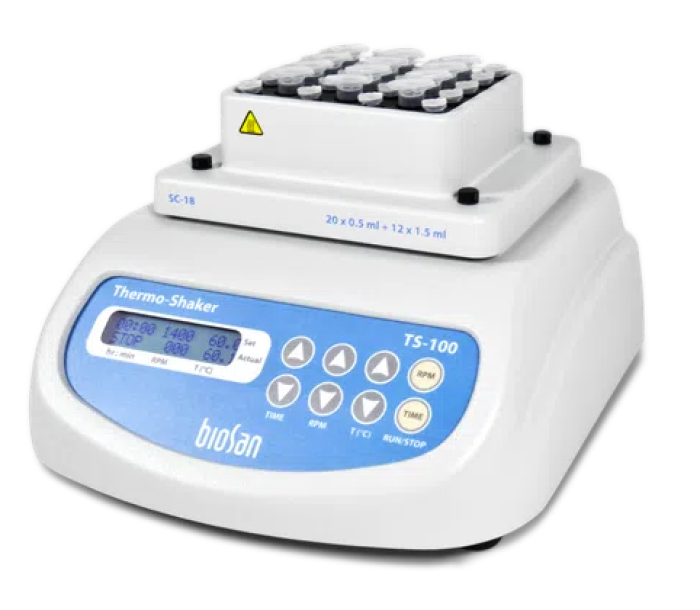

BioSan TS-100 Thermo Schudder voor Micro testtubes

Thermo–Shaker TS-100 provides intensive mixing and temperature control of samples in microtest tubes or PCR plate. Functions of heating and mixing can be performed both simultaneously and independently, i.e. the unit implements three devices in one:

1. Shaker;
2. Dry–block Thermostat;
3. Thermo–Shaker.

TS-100 is used for DNA analysis sample preparation, for extraction of proteins, polysaccharides, lipids and other cellular components.

Heating source is a printed heating board (12 V). Mixing is provided by movement of orbital type.

The instrument is applicable in:

  • DNA analysis — DNA extraction;
  • Biochemical study of enzymatic reactions and processes;
  • Extraction of metabolites from cellular material.


Temperature Calibration Function

With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.

Specification

Temperature setting range +25°C ... +100°C
Temperature control range 5°C above ambient ... +100°C
Temperature setting resolution 0.1°C
Temperature stability ±0.1°C
Temperature accuracy at +37°C ±0.5°C
Average heating speed from +25°C to +100°C 4°C/min
Temperature uniformity over the block ->
at +37°C ±0.1°C
at +60°C ±0.2°C
at +100°C ±0.2°C
Temperature calibration coefficient range 0.936...1.063 (± 0.063)
Speed control range 250–1400 rpm
Acceleration time 3 sec
Orbit 2 mm
Microprocessor controlled temperature, mixing speed and operation time +
Display LCD, 16 x 2 signs
Digital time setting 1 min–96 hrs (1 min increment)
Maximum continuous operation time max. 96 hours
Overall dimensions 205x230x130 mm
Weight 3.2 kg
Input current/power consumption 12 V, 3.5 A / 42 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V
