Edmund Bühler SM30AT control orbitale schudder + verwarming

Art.Nr.

L1996200000

Orbitaal schudbeweging, amplitude van 26 mm

Schudder belastbaar tot 30 kg

Toerental 15 - 300 rpm

Temperatuur opzetplaat instelbaar tot 120°C

Programmeerbaar middels Touch screen

Voltage: 230 V

Afmeting (lxbxh): 680 x 610 x 160 mm

Tijd instelbaar tot 120 minuten of continue

Gewicht 40 kg

Levering zonder opzetten

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Edmund Bühler.
Schudbeweging	orbitaal
Schudgewicht in kg	30
Temperatuur	Verwarmen
Min. RPM	15
Max. RPM	300

Productbeschrijving

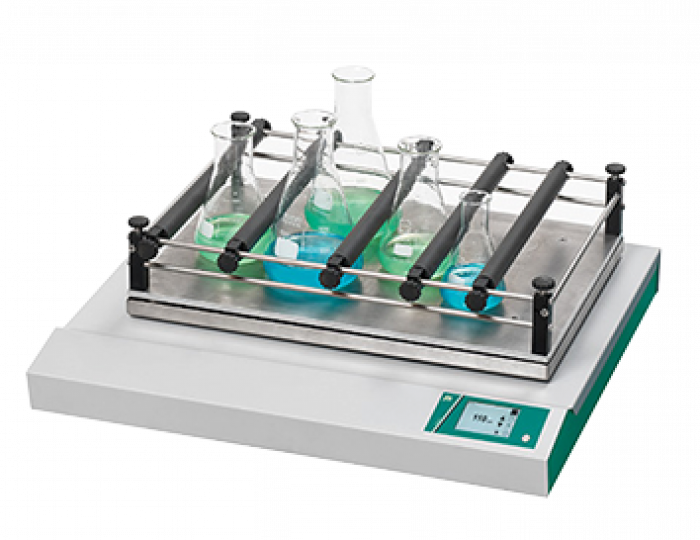

Edmund Bühler SM30AT control orbitale schudder met verwarming

The Hot Plate Shaker SM 30 AT control with touch display and programmable control has a heating plate and works with an orbital shaking motion. This shaker is ideally suited for high loads up to 25 kg and for mixing difficult media. The wide choice of rack systems ensures optimal fastening of different vessels.

Basic equipment
Basic device with heating plate, without rack system
With touch display and programmable control

Loading Capacity

Erlenmeyer flasks 100 ml 42 pieces
Erlenmeyer flasks 250 ml 20 pieces
Separating funnels 250 ml 6 pieces
Separating funnels 1000 ml 4 pieces
Test tube racks 5 pieces

Options

USB2
RS232
Control interface
Safety package
Defined stop

Details

Motion:	orbital
Shaking platform:	560 x 400 mm
Max. load:	25 kg
Shaking speed:	15 - 300 rpm, steplessly adjustable
Stroke:	26 mm
Runtime:	programmable / continuous
Temperature range:	up to 120°C
Control accuracy:	approx. +/- 1°C
Order no.:	6200 000
Accessory:	Rack System Combifix SM A Rack System Combifix SM B Rack System Combifix SM C

Technical specifications

Electrical supply:	230 V, 50 / 60 Hz 115 V version on request
Enclosure protection:	IP 21
Max. heating power:	400 W
Ambient temperature:	5°C to 50°C
Relative humidity:	~ 85 %
Dimensions (w x d x h):	680 x 610 x 160 mm
Weight:	40 kg
