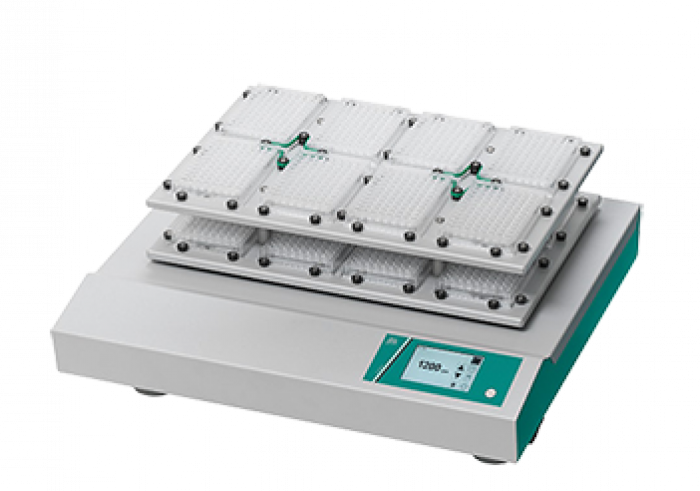

Edmund Bühler TiMix5 control orbit. microtiterplaat schudder
Art.Nr.
L1996167000

Edmund Bühler TiMix5 control orbit. microtiterplaat schudder

Art.Nr.
L1996167000
Orbitale schudbeweging,  amplitude 3 mm
Voor maximaal 48 microtiterplaten
Schudder belastbaar tot 5 kg
Schudplateau 400 x 300 mm
Toerental 100- 1400 rpm
Programeerbaar met  Touch display
Afmeting (lxbxh): 515 x 495 x 235 mm
Gewicht circa 18 kg
Levering zonder opzetplaat
Bekijk alle specificaties
Specificaties
Specificaties
Merk Edmund Bühler.
Schudbeweging orbitaal
Schudgewicht in kg 5
Temperatuur Kamertemperatuur
Min. RPM 100
Max. RPM 1.400
Productbeschrijving

Edmund Bühler Microplate Shaker TiMix5 control

The Microplate Shaker TiMix 5 control guarantees optimal mixing of small sample volumes in microplates, deepweel-plates or other plates in microplate format. The wide choice of different rack systems allows fastening between 8 and 48 microplates. The shaker also has a touch display and programmable control.

Basic Equipment
Basic device without shaking plate, without rack system
With touch display and programmable control

Loading Capacity

Standard rack system 0052 101          8 microplates
Rack system with pins 0052 096          8 microplates
Standard rack system 0052 101 +
Additional tray 0052 102                      16 microplates
RS high clamping pins 0052 104          24 microplates
RS metal clamping pins 0052 125        48 microplates

Options

USB2
RS232
Control interface
Safety package
Defined stop


Details

Motion:exact orbital motion
Shaking platform:400 x 300 mm for 8 microplates
Max. load:5 kg
Shaking speed:100 - 1400 rpm, in steps of 5
Stroke:3 mm (Special stroke on request)
Runtime:programmable / continuous
Order No.:6167 000
Accessory:Standard Rack System TiMix 5
Additional tray TiMix 5
Rack System with clamping pins
Rack System with high clamping pins
Rack System with metal clamping pins
Rack System Combifix KS
Universal tray KS
Incubator Hood TH 15


Technical specifications

Electrical supply:230 V or 115 V, 50 / 60 H please indicate in case of order

Enclosure protection:IP 21

Heat emission:approx. 11 W

Ambient temperature:5°C to 50°C

Relative humidity:~ 85 %

Dimensions (w x d x h):510 x 490 x 150 mm

Weight:20 kg
