Edmund Bühler VKS75 A control orbitale schudder 26mm 75kg
Art.Nr.
L1996111000
Edmund Bühler VKS75 A control orbitale schudder 26mm 75kg
Art.Nr.
L1996111000
Orbitale schudbeweging, amplitude 26 mm
Schudder belastbaar tot 75 kg
Schudplateau 760 x 600 mm
Toerental 40 - 200 rpm
Voltage: 230 V
Afmeting (lxbxh): 1045 x 840 x 270 mm
Tijd instelbaar tot 30 uur of continue
Programeerbaar middels touch screen
Gewicht 114 kg
Levering zonder opzetplaat
| Merk | Edmund Bühler. |
|---|---|
| Schudbeweging | orbitaal |
| Schudgewicht in kg | 75 |
| Temperatuur | Kamertemperatuur |
| Min. RPM | 40 |
| Max. RPM | 200 |

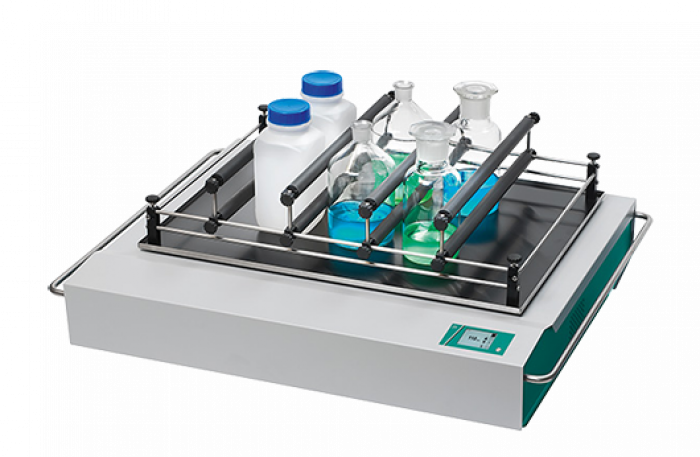

Multi-Flask Shaker VKS 75 A control
Big heavy-duty shaker VKS 75 A control with touch display and programmable control has an orbital shaking motion, a speed range of 30 – 200 rpm and a stroke of 26 mm. The VKS 75 A control is ideally suited for high loads up to 75 kg. (floor installation only!)
Basic Equipment
Basic device without shaking plate, without rack system
With touch display and programmable control
Loading Capacity
| Erlenmeyer flasks 500 ml | 32pieces |
| Erlenmeyer flasks 2000 ml | 12 pieces |
| Separating funnels 1000 ml | 6 pieces |
Options
USB2
RS232
Control interface
Safety package
Defined stop
Details
| Motion: | orbital |
| Shaking platform: | 760 x 600 mm |
| Max. load: | 75 kg |
| Shaking Speed: | 30 - 200 rpm, in steps of 5 |
| Stroke: | 26 mm |
| Runtime: | programmable / continuous |
| Order no.: | 6111 000 |
| Accessory: | Shaking plate VKS (1-storey) Rack System Combifix VKS A Rack System Combifix VKS B Rack System Combifix VKS C Universal tray VKS 1-storey Rack System VKS (2-storey) Rack System VKS "Giant" (3-storey) |
Technical Data
| Electrical supply: | 100 - 240 V, 50 / 60 Hz please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | max. 15 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 1050 x 835 x 250 mm |
| Weight: | 110 kg |
