Edmund Bühler VKS75 B control horizontale schudder 50mm 75kg

Art.Nr.

L1996112000

Horizontale schudbeweging, amplitude 50 mm

Schudder belastbaar tot 75 kg

Schudplateau 760 x 600 mm

Toerental 40 - 200 rpm

Voltage: 230 V

Afmeting (lxbxh): 1045 x 840 x 270 mm

Tijd instelbaar: tot 30 uur of continue

Programeerbaar middels toch screen

Gewicht 114 kg

Levering zonder opzetplaat

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Edmund Bühler.
Schudbeweging	horizontaal
Schudgewicht in kg	75
Temperatuur	Kamertemperatuur
Min. RPM	40
Max. RPM	200

Productbeschrijving

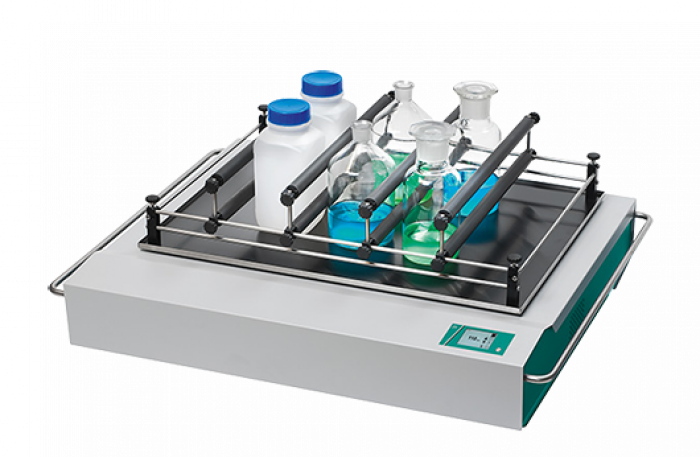

Multi-Flask Shaker VKS 75 B control

The big heavy-duty shaker VKS 75 B control with touch display and programmable control has a horizontal shaking motion, a speed range of 30 – 200 rpm and a stroke of 50 mm. The VKS 75 B control is ideally suited for high loads up to 75 kg. (floor installation only!)

Basic Equipment
Basic device without shaking plate, without rack system
With touch display and programmable control

Loading Capacity

Erlenmeyer flasks 500 ml      32 pieces
Erlenmeyer flasks 2000 ml    12 pieces
Separating funnels 1000 ml    6 pieces

Options

Stroke 36 mm
Stroke 60 mm
Stroke 80 mms
USB2
RS232
Control interface
Safety package
Defined stop

Details

Motion:	reciprocating (horizontal)
Shaking platform:	760 x 600 mm
Max. load:	75 kg
Shaking speed:	20 - 200 rpm, steplessly adjustable
Stroke:	50 mm (option: 36, 60 or 80 mm)
Timer:	programmable / continuous
Order no.:	6112 000
Accessory:	Shaking plate VKS (1-storey) Rack System Combifix VKS A Rack System Combifix VKS B Rack System Combifix VKS C Universal tray VKS 1-storey Rack System VKS (2-storey) Rack System VKS "Giant" (3-storey)

Technical specifications

Electrical supply:	100 - 240 V, 50 / 60 Hz please indicate in case of order
Enclosure protection:	IP 21
Heat emission:	max. 45 W
Ambient temperature:	5°C to 50°C
Relative humidity:	~ 85 %
Dimensions (w x d x h):	1050 x 835 x 250 mm
Weight:	110 kg
