Hoogte 860mm
Modelcode SMC-6B0
Merk | Esco |
---|---|
Afscheider zuigzijde | Nee |
Condenser uitlaat | Nee |

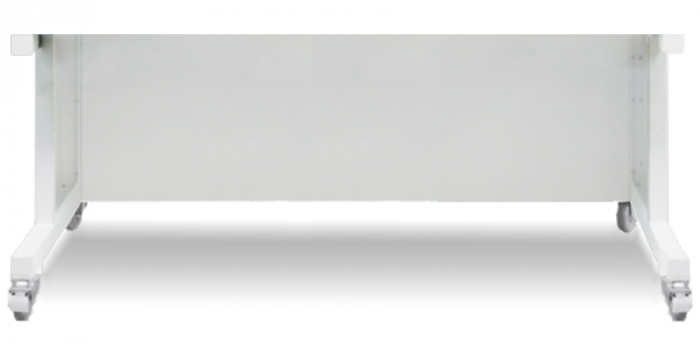

ESCO Fertilisafe MAW-6D8 Zwenkwielen, hoogte 860mm SMC-6B0
The Fertilisafe™ ART Workstation is the most advanced workstation in its class.
It is designed for use in applications that require a high level of control over environmental conditions. Applications can range from animal embryo culture in research to human embryo manipulation done in fertility laboratories.
Key Benefits:
- Advanced Multiple (9+1) independent heated work surfaces
- Surveillance system with data logging ensures proper system operation for maximum sample protection
- Laminar airflow with ULPA filtration ensures 99.999% efficiency that is superior to ordinary HEPA filters
- Low noise and low vibration help to create a better working environment for the embryologist
- Provision for microscope integration
- Humidification system
- Available in a variety of sizes and configurations to meet the need of the laboratory
Multi-Zone Heating System
- 1 set point, 10 independent zones with their own heating elements and sensors allow excellent uniformity
Accuracy: ± 0.2 ºC
Uniformity: ± 0.2 ºC
Microscope Integration Provision
- Having an integrated stereomicroscope in the work chamber make it possible to keep the culture
dishes at the right temperature at all times while observation and manipulation is carried out.
Surveillance System
- Provides the user real-time information of zone performance and other work area parameters such as
gas pressure and flow rate.
- The touchscreen monitor is a fully functional Windows PC with WiFi and a USB port.
Humidification System
- Gas outlet port is located on the table surface and the plastic cover will enclose the humidified gas effectively and
therefore creates small “incubator”.
Technical data
SPECIFICATION | MAW-4D_ | MAW-6D_ | MAW-6D_-DUAL | MAW-6D_-MP |
Work area dimensions (width x depth x height)* |
1260 x 500 x 710 mm (49.6" x 19.7" x 28.0") |
1870 x 500 x 710 mm 73.6" x 25.2" x 51.2") |
||
External dimensions without support stand (width x depth x height) |
1340 mm x 640 mm x 1300 mm (52.8" x 25.2" x 51.2") |
1950 mm x 640 mm x 1300 mm (76.8" x 25.2" x 51.2") |
||
External Dimensions with "B" type support stand (width x depth x height) |
1340 mm x 640 mm x 2160 mm (52.8" x 25.2" x 85.0") |
1950 mm x 640 mm x 2160 mm (76.8" x 25.2" x 85.0") |
||
Laminar air velocity | Average of 0.21 m/s or 41 fpm (± 20%) | |||
Filter efficiency | >99.999% for particle size between 0.1 to 0.3 microns per IEST-RP_CC001.3 / h24 per EN 1822 | |||
Noise level (per NSF 49)** | 47 dBa | 52 dBa | ||
Pre-filter | Disposable and non-washable polyester fibers with 85% arrestance / EU3 rated | |||
Heating System | Smart power injection electrical heating, 9+1 zones | Smart power injection electrical heating 2 x (9+1) zones | Smart power injection electrical heating, 9+1 zones | |
Included advanced features | Integrated humidification system HS-1 Surveillance system with data logger AIO PC Transmitted light source SC-1 (with bulb) 5 x PT1000 validation ports |
2x Integrated humidification system HS-1 2x Surveillance system with data logger 2x AIO PC 2 x Transmitted light source SC-1 (with bulb) 10 x PT1000 validation ports |
Integrated humidification system HS-1 Surveillance system with data logger AIO PC Transmitted light source SC-1 (with bulb) 5 x PT1000 validation ports |
|
Included accessories | 1 x water bottle for HS-1, including tubing 1 x sample carry tray 1 x humidified gas plastic cover |
2 x water bottle for HS-1,including tubing 2 x sample carry tray 2 x humidified gas plastic cover | 1 x water bottle for HS-1,including tubing 1 x sample carry tray 1 x humidified gas plastic cover | |
Microscope | Required Not included (see microscope ordering information) |
|||
Position for 1 microscope | Position for 2 microscope | Position for 1 microscope and 1 inverted microscope |
||
Support Stand | Required, Not included (see support stand ordering information) |
|||
Shipping dimensions (width x depth x height) |
1420 x 720 x 1760 mm (55.9" x 28.3" x 69.3") |
2100 x 820 x 1760 mm (82.7" x 32.3" x 69.3") |
||
Shipping weight | 243 kg | 340 kg |
* The actual MAW-6D_-MP's work area dimensions will be customized to fit the inverted microscope.
**Noise reading in open field condition / anechoic chamber. Noise reading in normal room varies by room size, layout,
and background noise, but may reach roughly 3-4 dBA above these values.
