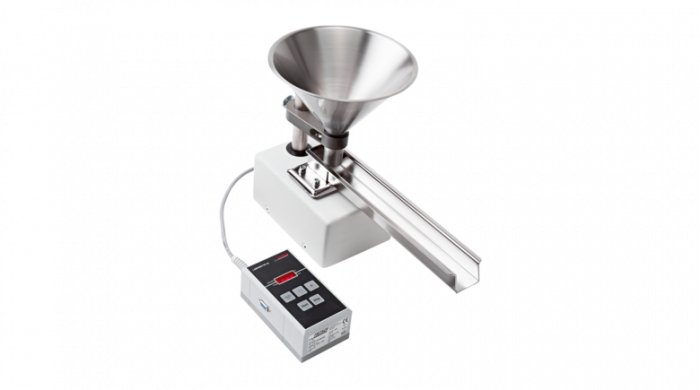

Fritsch Laborette 24 vibratie trilgoot U-vormig
Art.Nr.
L10824002000

Fritsch Laborette 24 vibratie trilgoot U-vormig

Art.Nr.
L10824002000
Voor het continu doseren van poeders in een maalmolen of monsterverdeler
Lengte trilgoot 330 mm, overstand 215 mm
Hoeveelheid 2,5- 2500 g/min
Afmeting (bxdxh) 44 x 14 x 34 cm
Gewicht 12 kg
Aansluiting 220V
Bekijk alle specificaties
Specificaties
Specificaties
Merk Fritsch
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

Fritsch Vibratory Feeder LABORETTE 24 with U-shaped channel

For slow, measured feeding to achieve a uniform, wide sample feeding of free-flowing materials.

Areas of application

Slow, measured feeding of free-flowing material to obtain a uniform, wide sample feeding for a wide range of applications, such as for sample dividers, mills, mixers, scales.

Method of operation

Through vibration of a channel of stainless steel, free-flowing material is conveyed out of a funnel and to the open end of the channel in a uniform stream.

The rate of flow can be controlled individually with a separate control device by modifying the vibration amplitude of the channel.

Control of the vibration amplitude is performed by a microprocessor-controlled control unit with which even the smallest quantities of material can be conveyed with absolute uniformity.

NEW: Control unit for Vibratory Feeder LABORETTE 24

  • Setting of the maximum feed quantity in the setup mode by the user
  • Adjustment of the feed intensity and time via display
  • Fine adjustment of the material flow even of smallest quantities
  • Reproducible setting of the feed rate, when changing the material
  • Digital display of the set feed rate in percent
  • Digital and RS232 interface
  • The new control unit is retrofittable for all Vibratory Feeders LABORETTE 24

Features overview

  • As a standard, with polished stainless steel channel and funnel, PTFE-coating on request
  • Precisely controlled by microprocessor control with interface
  • Extensive choice of flow rates for smallest and largest quantities
  • Suitable for both coarse and fine materials
  • Simple to clean due to easily removable components
  • Small footprint
  • V-shaped and U-shaped channels easy to interchange
  • Maintenance-free electromagnetic drive and components
  • Recyclable, compact cast housing
  • Separate control unit
  • Low energy consumption, only 0.1 kW drive power
  • Certified safety (CE mark)
  • 2-year warranty

Equipment

The standard equipment delivered with the Vibratory Feeder includes the wide U-shaped channel, funnel and control unit, but does not include a stand, which must be ordered as an accessory, if needed. The wide U-shaped channel can be easily replaced with a V-shaped channel for narrow, directed material feeding.

Applications

Our application report contains practical tests and comparative measurements with the Vibratory Feeder LABORETTE 24 just simply download:
