Fritsch Laborette 24 vibratie trilgoot V-vormig

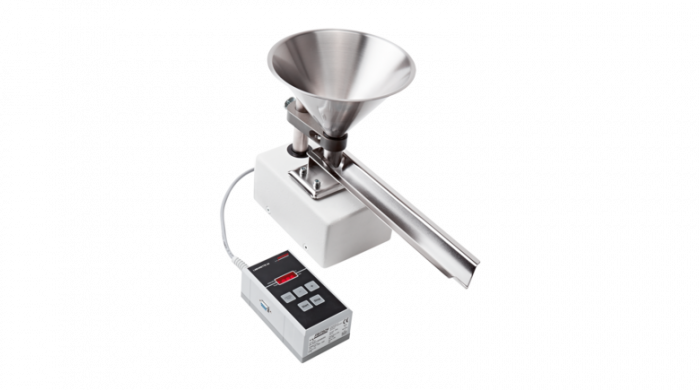

Fritsch Vibratory Feeder LABORETTE 24 with V-shaped channel;

For slow, measured feeding to achieve a narrow, directed sample discharge of free-flowing materials.

Areas of application

Slow, measured feeding of free-flowing material to obtain a narrow, directed sample feeding for a wide range of applications, such as for sample dividers, mills, mixers, scales.

Combinable with the Rotary Cone Sample Divider LABORETTE 27 and the Variable Speed Rotor Mill PULVERISETTE 14 for ensuring continuous and precisely measured feeding of the sample.

Method of operation

Through vibration of a channel of stainless steel, free-flowing material is conveyed out of a funnel and to the open end of the channel in a uniform stream.

The rate of flow can be controlled individually with a separate control device by modifying the vibration amplitude of the channel.

Control of the vibration amplitude is performed by a microprocessor-controlled control unit with which even the smallest quantities of material can be conveyed with absolute uniformity.

NEW: Control unit for Vibratory Feeder LABORETTE 24

• Setting of the maximum feed quantity in the setup mode by the user
• Adjustment of the feed intensity and time via display
• Fine adjustment of the material flow even of smallest quantities
• Reproducible setting of the feed rate, when changing the material
• Digital display of the set feed rate in percent
• Digital and RS232 interface
• The new control unit is retrofittable for all Vibratory Feeders LABORETTE 24

Features overview

• As a standard, with polished stainless steel channel and funnel, PTFE-coating on request
• Precisely controlled by microprocessor control with interface
• Extensive choice of flow rates for smallest and largest quantities
• Suitable for both coarse and fine materials
• Simple to clean due to easily removable components
• Small footprint
• V-shaped and U-shaped channels easy to interchange
• Maintenance-free electromagnetic drive and components
• Recyclable, compact cast housing
• Separate control unit
• Low energy consumption, only 0.1 kW drive power
• Certified safety (CE mark)
• 2-year warranty

Equipment

The standard equipment delivered with the Vibratory Feeder includes the wide V-shaped channel, funnel and control unit, but does not include a support frame, which must be ordered as an accessory, if needed. The V-shaped channel can be easily replaced with the U-shaped channel for uniform, wide material feeding.
