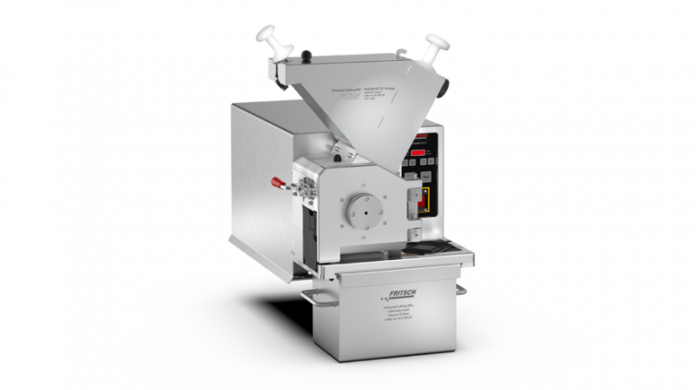

Fritsch Pulverisette 19 large snijmolen RVS 50-700 rpm 230 V

Art.Nr.

L10819400000

Max. afmeting te malen monster: 120x 85 mm
Max. hoeveelheid monster: 85 l/uur
Eindfijnheid: afhankelijk van zeef
Zeefringen: 0,5 – 10 mm
Toerental: 50 - 700 rpm
Afmeting totaal (bxdxh): 450 x 650 x 630 mm
Vermogen: 200-240 V , 50-60 Hz, 2350 watt, 26 Nm
Gewicht: 88 kg
Levering zonder vultrechter, snijgereedschap, zeefcasette, opvangvat en onderstel
Installatiekosten op aanvraag

Bekijk alle specificaties

Download de PDF

Sorry, dit product kunt u niet toevoegen aan uw winkelwagen.

Specificaties

Specificaties
Merk	Fritsch
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

FRITSCH PULVERISETTE 19 LARGE

Variable 50–700 rpm for powerful comminution for larger amounts

The PULVERISETTE 19 large is our powerful low-speed Universal Cutting Mill for fast reproducible comminution of hard, tough-elastic and temperature sensitive materials and plastics with a maximum feed size of 120 x 85 mm and a throughput of up to 85 l/h with a low rotational speed of 50-700 rpm and a maintenance-free 2.8 kW three-phase motor with frequency converter.Due to the variable rotational speed adjustment in increments of ten between 50 and 700 rpm and a torque of up to 67 Nm enables the PULVERISETTE 19 large due to the combination of low cutting rate and extreme cutting forces a very powerful comminution.

At the same time, it is the ideal solution for all cases where e.g. thermal damage, the loss of highly volatile substances, or an excessively high fine share need to be avoided. And the PULVERISETTE 19 large is also ideal for RoHS tests. Due to Clean Design the PULVERISETTE 19 is quickly and simply cleaned and offers a reliable protection against cross-contamination.

IDEAL FOR

PLASTICS AND TEXTILES

AGRICULTURE AND FORESTRY

ENVIRONMENT

ROHS ANALYTIC

CONSTRUCTION MATERIALS

CHEMISTRY

FOOD STUFFS
