Fritsch schijvenfreesrotor wolfraamcarbide P19
Art.Nr.
L10845520000

Fritsch schijvenfreesrotor wolfraamcarbide P19

Art.Nr.
L10845520000
Schijvenfreesrotor met bewegende snijplaten en contra-messen uit wolfraamcarbide Geschikt voor Pulverisette P19
Bekijk alle specificaties
Specificaties
Specificaties
Merk Fritsch
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

Fritsch schijvenfreesrotor wolframcarbide P19

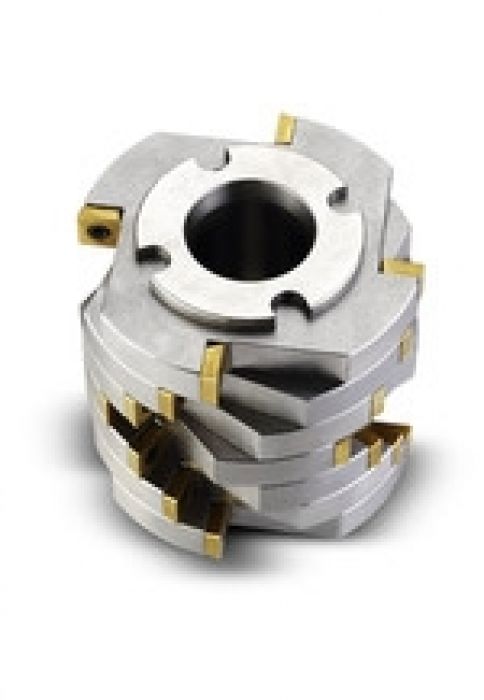

Disk milling cutter rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide

This disk milling cutter rotor with indexable inserts and fixed knives made of hardmetal tungsten carbide offers the greatest resilience and offers the best stability of the knives. The rotor is even suitable for scrap circuit board with glass fibre residue and copper cable. On the disk milling cutter rotor, the cutting plates can be turned four times and replaced individually. Damage or wear will never again make it necessary to buy a completely new rotor.

Also available is a standard rotor made of hardened stainless steel with V-cutting edges and fixed knives which is suited primarily for comminution of tough-elastic materials and films due to its especially acute cutting angle and the high cutting action that results.

Alternatively a rotor with V-cutting edges and fixed knives made of hardmetal tungsten carbide is offered. This rotor comminutes the grinding material through impact and cutting forces and is suitable for hard-tough materials.

We also offer a rotor made of tool steel with straight cutting edges which run parallel to the fixed knives, it is suitable for easily cut material, such as hay, straw, fibrous or biological materials. The rotor knives may be turned, since they have 2 cutting edges. Your advantage: doubling the life span of your rotor knives.

For sample preparation according to RoHS (for the evidence of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets of chromium-free tool steel.
