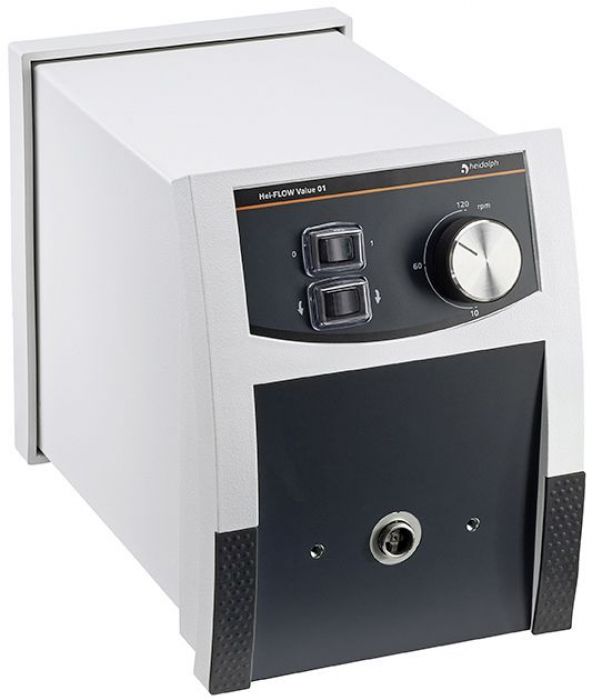

Heidolph Hei-FLOW Value 01 enkel kanaals slangenpomp
Art.Nr.
L1298523-50010-00
Heidolph Hei-FLOW Value 01 enkel kanaals slangenpomp
Art.Nr.
L1298523-50010-00
1 kanaals slangen pomp
Volume 0,83 tot 861 ml/min per kanaal
Totaal 2 rollen
Toerental 10 - 120 RPM analoge instelling
Afmetingen (bxdxh) 166 x 256 x 225 mm
Gewicht 7,6 kg
Levering zonder slangen
Volume 0,83 tot 861 ml/min per kanaal
Totaal 2 rollen
Toerental 10 - 120 RPM analoge instelling
Afmetingen (bxdxh) 166 x 256 x 225 mm
Gewicht 7,6 kg
Levering zonder slangen
| Merk | Heidolph |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Heidolph Hei-FLOW Value 01 enkel kanaals slangenpomp
Pump includes leading safety standards and features for superior ease of use and reduced cost of ownership, plus:
- Adjust the variable speed from 10 - 120 rpm on the analog control knob. Your speed is held constant even under changing loads
- These models feature electronic speed control at an accuracy rate of ± 2 %
- At the press of a button the pump operates clockwise or counter-clockwise
- Flow rates of 0.83 - 861 ml/min with single-channel pump heads
- This pump drive is suitable for mulit-channel operation
- Multi-channel flow rates from 0.005 - 364 ml/min
- Upgrade your Hei-FLOW Value 01 for multi-channel operation in just minutes with a pump head adaptor
Technical data
| Speed range | 10 - 120 rpm |
|---|---|
| Control accuracy motor | ±2 % |
| Select direction of rotation | CW / CCW |
| Flow rates single-channel pumps | 0.83 – 861 ml/min |
| Flow rates multi-channel pumps | 0.005 – 364 ml/min |
| Flow rate accuracy (water without counter pressure) | ±5 % |
| Interval dosing | - |
| Volume dosing | - |
| Analog interface | - |
| Digital Interface | - |
| Protection class DIN EN 60529 | IP 55 |
