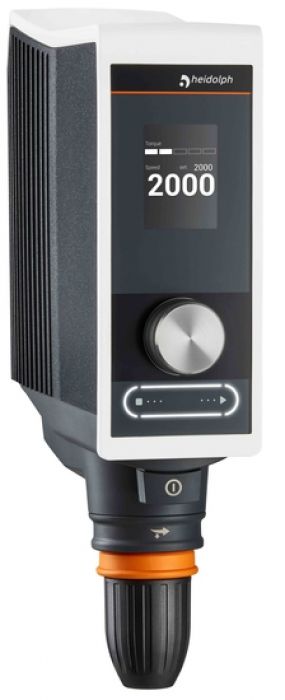

Heidolph Hei-Torque Expert 100 bovenroerder 50l 60.000mPas
Art.Nr.
L1298501-61010-00

Heidolph Hei-Torque Expert 100 bovenroerder 50l 60.000mPas

Art.Nr.
L1298501-61010-00
Met digitaal display
Maximaal 50 liter (water)
Viscositeit maximaal 60.000 mPas
Maximaal torque 100 Ncm
Traploze toerentalbereik 10 tot 2.000 rpm
Afmetingen (bxhxd) 86 x 257 x 241 mm
Gewicht 4,1 kg
Statief en roerbladen optioneel
Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk Heidolph
Viscositeit - mPas 60.000
Volume 50 liter
Productbeschrijving

Heidolph Torque Expert 100 digitaal bovenroerder

The Hei-TORQUE Expert 100 is a overhead stirrer with a wide speed range (10 - 2,000 rpm) and a maximum torque of 100 Ncm. With it you can optimally stir viscosities up to 60,000 mPas or volumes up to 50 liters (H2O).


The Hei-TORQUE Expert 100 performs every stirring task with minimal noise thanks to the latest engine technology. This overhead stirrer is also very user-friendly in terms of operation and safety. The 2.4 inch display makes it very easy to set the application parameters and control the process (e.g. using the torque trend display). The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.


Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Expert 100 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.

Technical data

Number of speed gears 1

Rotation speed range 10 - 2,000 rpm

Rotation speed indicator digital monochrom 2.4"

Speed control electronic

Max. torque 100 Ncm

Torque indicator symbol

Overheat protection automatic cut-out

Viscosity max. 60,000 mPa s

Stirring cap. (H2O), max. 50 l

Throught-shaft design yes

Shaft diameter, max. 10.5 mm

Counter/ Timer -Analog / digital interface -

Power rating motor input 90 W

Protection class DIN EN 60529 IP 54
