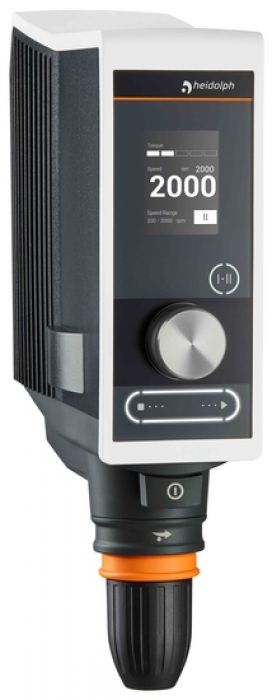

Heidolph Hei-Torque Expert 400 bovenroerder 100l 250.000mPas
Art.Nr.
L1298501-64010-00

Heidolph Hei-Torque Expert 400 bovenroerder 100l 250.000mPas

Art.Nr.
L1298501-64010-00
Met digitaal display Maximaal 100 liter (water)
Viscositeit maximaal 250.000 mPas
Maximaal torque 400 Ncm
Traploze toerentalbereik 10 - 400 en 200 - 2.000 rpm
Afmetingen (bxhxd) 93 x 257 x 241 mm
Gewicht 5,2 kg
Statief en roerbladen optioneel
Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk Heidolph
Viscositeit - mPas 250.000
Volume 100 liter
Productbeschrijving

Heidolph Hei-Torque Expert 400 bovenroerder 100 liter 250.000 mPas

With Hei-TORQUE Expert 400 you can optimally stir viscosities up to 250,000 mPas or volumes up to 100 liters (H2O). Thanks to its 2-gear stage design, it stirs particularly powerfully in the speed range up to 400 rpm and is therefore particularly suitable for applications with highly viscous media that require mixing in the lower speed range. However, operation at speeds of up to 2,000 rpm is also possible in the second speed.


The overhead stirrer Hei-TORQUE Expert 400 performs every stirring task with minimal noise thanks to the latest engine technology. This easy-to-use overhead stirrer has a display of 2.4 inches, which makes it very easy to set the application parameters and control the process (e.g. using the torque trend display). The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.


Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Expert 400 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools for the best stirring results.


Technical data

Number of speed gears 2

Rotation speed range 10 - 400 rpm / 20 - 2,000 rpm

Rotation speed indicator digital monochrom 2.4"

Speed control electronic

Max. torque 400 Ncm

Torque indicator symbol

Overheat protection automatic cut-out

Viscosity max. 250,000 mPa s

Stirring cap. (H2O), max. 100 l

Throught-shaft design yes

Shaft diameter, max. 10.5 mm

Counter/ Timer -Analog / digital interface -

Power rating motor input 150 W

Protection class DIN EN 60529 IP 54
