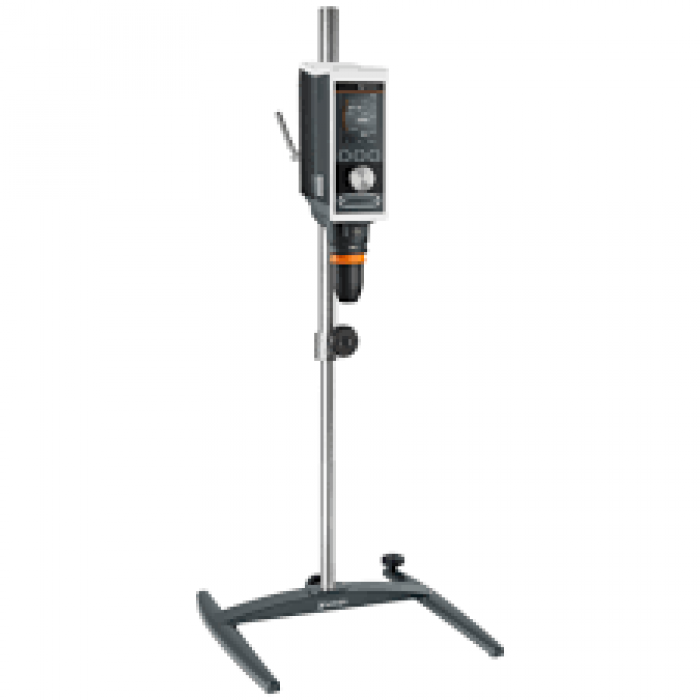

Heidolph Hei-TORQUE Platinum Package

Hei-TORQUE Platinum Package consits:
Hei-TORQUE Ultimate 400

Telescope stand

Clamp

Heidolph Hei-Torque Ultimate 400 bovenroerder 100l 250.000mP

These stirrers are ideal for demanding tasks which have to be reproducible and documentable. The huge number of additional features and operation modes allows for a perfect adjustment to your individual application

• Accurate torque indication shows any viscosity changes
• Constant speed even under changing loads
• Digital 3.2" display for ease of operation:
• Allows for preprogrammed profiles
• Saves these profiles in memory
• Interval operation
• Watch rpm and torque graph life
• Timer / Countdown / Real time settings
• All performance-related parameters can be set individually:
• Intensity of the start operation - from slow to fast
• The rotational speed can be limited to avoid splashing media
• The torque limit prevents damage to the impeller, e.g. when using fragile impellers in high viscous media
• Safe start and stop of operation via slide touch panel to avoid unintended stirring
• Newest motor generation provides maximum power at minimum noise level
• RS 232 and USB interface to save all process data in a digital file
• USB cable included in scope of delivery, RS 232 available as accessory
• Including free Hei-Control software for dependable automation of all processes. Control up to four devices simultaneously.

Technical data Hei-TORQUE Precision 400

• Power rating, motor input/output (W): 150/90
• Number of speed gears: 2
• Speed range (rpm): 10- 400 / 20 - 2.000
• Speed indicator: digital colour 3.2"
• Speed control: electronic
• Torque, maximum (Ncm): 400
• Torque indicator: precise value
• Overheat protection: automatic cut-out
• Motor protection: temperature control software
• Viscosity, max. (mPa s): 250.000
• Stirring cap. (H2O), max. (l): 100
• Analog / digital interface: USB or RS232
• Admissible session: continuous operation
• Counter/Timer: yes
• Shaft diameter, max. (mm): 10.5
• Ambient temperature range: 5 °C - 31 °C at 80 % rel. humidity, 32 °C - 40 °C linearly increasing to 50 % relative humidity
• Dimensions (wxhxd) (mm): 93 x 350 x 247
• Stay bar size (dia. x l) (mm): 13 x 160
• Weight (kg): 5.3
• Protection class (DIN EN 60529): IP54
