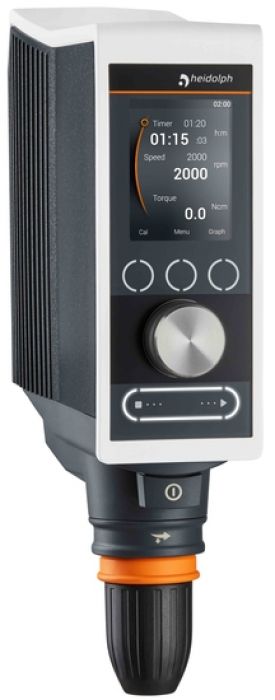

Heidolph Hei-Torque Ultimate 100 bovenroerder 50l 60.000mPas
Art.Nr.
L1298501-61020-00

Heidolph Hei-Torque Ultimate 100 bovenroerder 50l 60.000mPas

Art.Nr.
L1298501-61020-00
Met digitaal display
Maximaal 50 liter (water)
Viscositeit maximaal 60.000 mPas
Maximaal torque 100 Ncm RS232 of USB interface
Timer functie
Traploze toerentalbereik 10 tot 2.000 rpm
Afmetingen (bxhxd) 86 x 257 x 241 mm
Gewicht 4,1 kg
Statief en roerbladen optioneel
Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk Heidolph
Viscositeit - mPas 60.000
Volume 50 liter
Productbeschrijving

Heidolph Hei-TORQUE Ultimate 100 - Overhead Stirrers

The devices of the Hei-TORQUE Ultimate line are Heidolph high performance overhead stirrers.


The Hei-TORQUE Ultimate 100 is a overhead stirrer with a wide speed range (10 - 2,000 rpm) and a maximum torque of 100 Ncm. It can powerfully stir viscosities up to 60,000 mPas or volumes up to 50 liters (H2O).


In addition, the Hei-TORQUE Ultimate 100 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.


The overhead stirrer Hei-TORQUE Ultimate 100 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.


Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Ultimate 100 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.


Technical data

Number of speed gears 1

Rotation speed range 10 – 2,000 rpm

Rotation speed indicator digital color 3.2"

Speed control electronic

Max. torque 100 Ncm

Torque indicator precise value

Overheat protection automatic cut-out

Viscosity max. 60,000 mPa s

Stirring cap. (H2O), max. 50 l

Throught-shaft design yes

Shaft diameter, max. 10.5 mm

Counter/ Timer yes

Analog / digital interface USB and RS 232

Power rating motor input 90 W

Protection class DIN EN 60529 IP 54
