Met verticale reflux condensor: koeloppervlak 1400 cm², 1 liter opvangkolf, 1 liter verdamperkolf (gecoat glaswerk)
Inclusief waterbad met digitale temperatuurinstelling 20 - 210 °C
Toerental 10-280 rpm digitaal inselbaar
LCD scherm 3.5 " voor eenvoudige bediening
Afmeting (dxbxh): 477 x 739 x 845 mm
Gewicht: circa 16 kg
Levering zonder vacuümpomp
- Hei-Vap Value
- Hei-Vap Value digital
Merk | Heidolph |
---|---|
Uitvoering koeler | Reflux |
Gecoat glaswerk | Ja |
Lift | Motorlift |
Vacuümregeling | Optioneel |

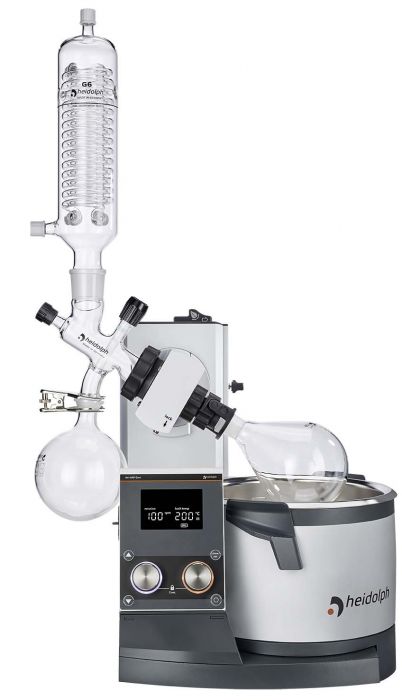

Heidolph Hei-VAP Core ML/G6B filmverdamper gecoat glas
An operating concept that is focused on the essentials: clear and with access to the basic parameters rotation speed and heating bath temperature at any time.
- Clear digital display showing actual and set values
- Two separate knobs with dynamic control for setting the rotation speed and heating bath temperature: fast turning for large jumps, slow turning for precise setting of the set values
- Accidental changing of the values can be prevented by the lock function
- Intuitive LED ring light system makes activated functions clearly visible even from a distance
- Easy adjustment of the immersion depth up to 160 mm and the inclination angle from 20° to 80°
- Standby function and residual heat warning at heating bath temperatures above 50 °C
- Available as hand or motor lift models
- The standby button stops all functions and, when using a motor lift model, lifts the evaporating flask from the heating bath.
Product Advantages
All Hei-VAP rotary evaporators have a safety heating bath with overheating and dry running protection, ergonomic handles, double wall and an integrated spout
Digital displays allow continuous monitoring of the current values and, thanks to protection class IP 42, protect the electronics reliably against dripping water and dust
The locking function of the knobs prevents unintentional adjustment of the values
The standby button stops all functions and, when using a motor lift model, lifts the evaporating flask from the heating bath
Additional safety from a single source: From the transparent plastic coating of the glassware to guard shield and guard hood (implosion protection) to IQ-OQ documentation and certification
Universal heating bath for all flask sizes up to 5 l (no retooling required).The sturdy metal connection to the device’s base allows variable distances for the heating bath up to 200 mm without tilting
Separate knobs with intuitive LED ring light system not only allow visual process control, but also direct intervention in the evaporation process at any time
Residual heat indicator: When the function is deactivated and in standby mode, flashing and the display of the residual heat warn of the risk of burns (> 50 °C)
In order to prevent short circuits and corrosion systematically, the cable connections of the operating panel and the heating bath comply with the high protection class IP 67
Technical data
Lift | Hand lift or Motor lift |
---|---|
Rotation speed range | 10 - 280 rpm |
Rotation speed indicator | 3.5" LCD Display |
Heating capacity | 1,300 W |
Overheat protection bath | cut-off at 5 °C over set temperature via separate PT 1000 |
Bath temperature setting | 3.5" LCD Display |
Heating bath temperature control | electronic / digital |
Max. size evaporating flask | 5 l |
Integrated vacuum controller | - |
Timer | - |
Integrated Hei-CHILL controller | - |
Vacuum program Dynamic AUTOaccurate requires AUTOaccurate sensor |
- |
Programmable ramps | - |
Condensing surface | 1,400 cm² |
Condensing surface XL condenser | 2,200 cm² |
