Heidolph Hei-Vap Ultimate control ML/G3BXL verdamper gec.
Art.Nr.
L1298576-02315-00

Heidolph Hei-Vap Ultimate control ML/G3BXL verdamper gec.

Art.Nr.
L1298576-02315-00

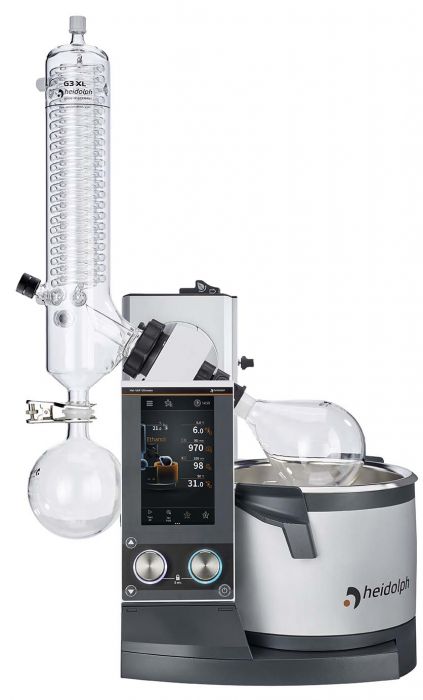

Complete rotatiefilmverdamper met motorlift
Met glaswerkset G3BXL gecoat glas
Met vertictale XL condensor 2200 cm ², 1 liter opvangkolf, 1 liter verdamperkolf (gecoat glaswerk)
Inclusief waterbad met digitale temperatuurinstelling 20 - 210°C
Toerental 10-280 rpm digitaal inselbaar
7" touchscreen USB, Micro SD plus LAN / RS 232 interfaces (Lab 4.0 ready)
Geïntegreerd oplosmiddel database Timer functie
Geintegreerder vacuümregelaar & Hei-Chill controller
Afmeting (dxbxh): 477 x 739 x 845 mm
Gewicht 16 kg
Zonder vacuümpomp & chiller
Installatie en uitleg op aanvraag

Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk Heidolph
Uitvoering koeler Verticaal XL
Gecoat glaswerk Ja
Lift Motorlift
Vacuümregeling Automatische regeling inbegrepen
Productbeschrijving

Heidolph Hei-Vap Ultimate control ML/G3BXL verdamper gecoat glas

Adds numerous smart features to the Hei-VAP Ultimate, as well as an overview of all parameters and the current process

  • 7" touch display for controlling the entire system including the vacuum and the cooling temperature
  • For precise monitoring, the pictogram on the display also symbolizes active functions
  • Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
  • Setting of values either via the touch display or the separate quick access knobs
  • Direct access to two favorites on the start screen
  • Expandable solvent library. You can also transfer your own favorites to other devices using a USB stick
  • Define and save own evaporation processes (ramps)
  • Automatically evaporate with the Dynamic AUTOaccurate Program (DAA). Convenient and customizable: from foam avoidance to highly efficient evaporation
  • USB and Micro SD plus LAN / RS 232 interfaces (Lab 4.0 ready)
