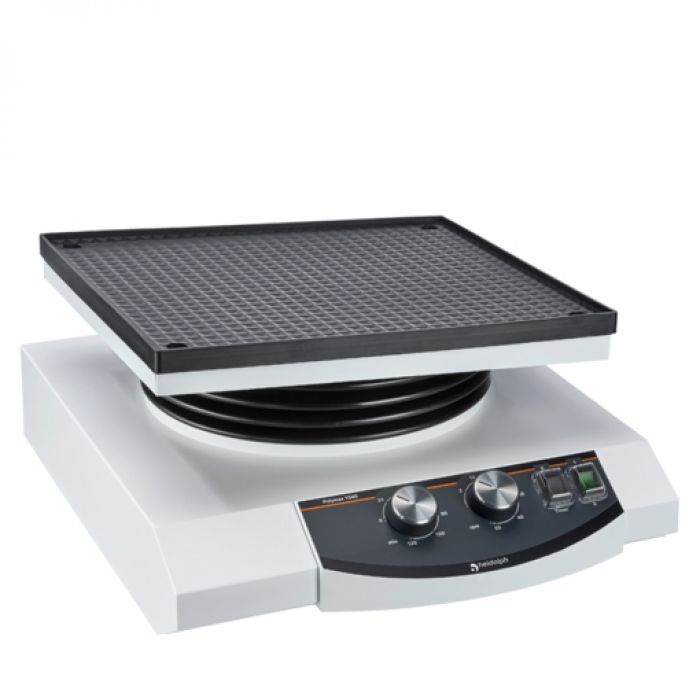

Heidolph Polymax 1040 wip wap schudder met hoek van 5°
Art.Nr.
L1298543-42205-00
Heidolph Polymax 1040 wip wap schudder met hoek van 5°
Art.Nr.
L1298543-42205-00
Wip wap schudbeweging hoek van 5 °
Timer of continue schudden
Schudder belastbaar tot 5 kg
Toerental 2 - 50 rpm analoog instelbaar
Afmetingen (lxbxh) 375 x 320 x 195 mm
plateau afmeting 290 x 258 mm
Gewicht 8 kg
beschermingsklasse volgens DIN En 60529 IP40
| Merk | Heidolph |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
Heidolph Polymax 1040 wip wap schudder met hoek van 5°
The incubating model
- The Polymax 1040 is a medium-sized model and accepts load capacities of 5 kg
- Model with a tilt angle of 5° for soft and gentle movements
- Use this model for any vessel – from culture plates and media bottles to Erlenmeyer flasks – there is no limit
- Set and continuously adjust the variable speed on the analog control knob from 2 to 50 rpm – ideal for cell culture plates
- This model is suitable for the modular incubator system and is recommended for applications which require variable temperature control up to 65 °C
- An analog process timer allows for unattended operation and can be set from 1 to 120 minutes. When the set time has elapsed an acoustic alarm will sound and the operation stops
Technical data
| Motion | wave |
|---|---|
| Rotation speed range | 2 - 50 rpm |
| Operating Mode | timer or continous |
| Orbit / Stroke | - |
| Timer | Yes |
| Power input | 115 W |
| Platform size | 290 x 258 mm |
| Max. Load | 5 kg |
| Overheat protection | self-resetting |
| Protection class DIN EN 60529 | IP 40 |
