Heidolph Promax 1020 platform schudder 30-250 rpm 5 kg
Art.Nr.
L1298543-22332-00

Heidolph Promax 1020 platform schudder 30-250 rpm 5 kg

Art.Nr.
L1298543-22332-00
Horizontale heen- en weer schudbeweging, 32 mm amplitude Schudder belastbaar tot 5 kg Toerental 30 - 250 rpm analoog instelbaar Timer 1en continue analoog instelbaar Afmetingen (dxbxh) 375 x 320 x 125 mm Plateau afmeting 290 x 258 mm Gewicht 8 kg
Bekijk alle specificaties
Specificaties
Specificaties
Merk Heidolph
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

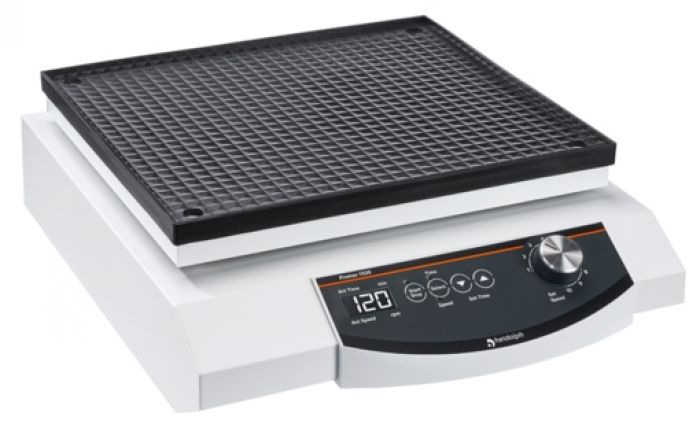

Heidolph Promax 1020 platform schudder 30-250 rpm 5 kg

The incubating model

  • The Promax 1020 is a medium-sized model and accepts load capacities of 5 kg
  • Wide range of accessories, attachments and clamps for separatory funnels available
  • With a stroke length of 32 mm the Promax model performs an ideal motion for separatory funnels
  • Set and continuously adjust the variable speed on the digital display from 30 to 250 rpm
  • This model is suitable for the modular incubator system and is recommended for applications which require variable temperature control up to 65 °C
  • An digital process timer allows for unattended operation and can be set from 1 to 999 minutes. When the set time has elapsed an acoustic alarm will sound and the operation stops

Technical data

Motion reciprocating
Rotation speed range 30 - 250 rpm
Operating Mode timer or continous
Orbit / Stroke 32 mm
Timer Yes
Power input 50 W
Platform size 290 x 258 mm
Max. Load 5 kg
Overheat protection self-resetting
Protection class DIN EN 60529 IP 40
