Heidolph TR 21 turbine roerder
Art.Nr.
L1298509-21000-00

Heidolph TR 21 turbine roerder

Art.Nr.
L1298509-21000-00

Lengte 400 mm
Materiaal rvs V4A
Schaft diameter 8 mm

Bekijk alle specificaties
Specificaties
Specificaties
Merk Heidolph
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

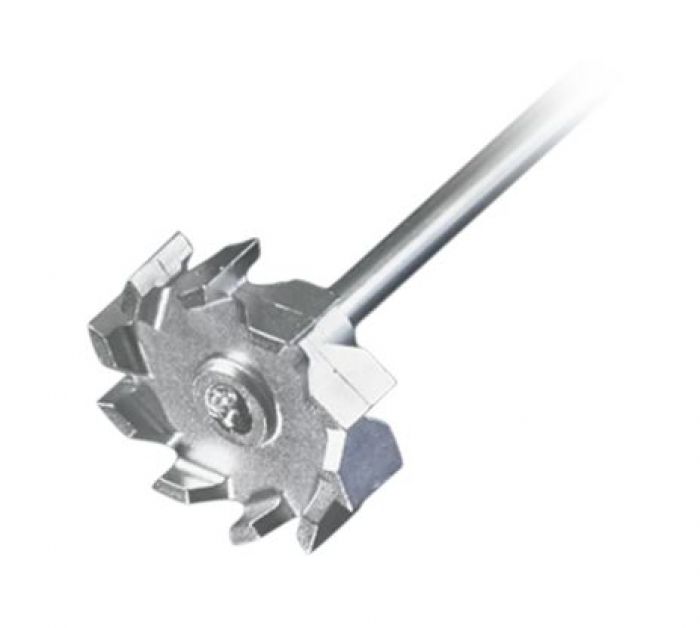

Heidolph TR 21 Radial-Flow Impeller (50 mm)

Due to the jagged shape of the stirrer blade, the radial flow impeller TR 21 is ideally suited for the construction of emulsions and the gassing or foaming of liquids in vessels with the following characteristics:

ideal vessel diameter: 143- 250 mm

ideal ground clearance: 25- 50 mm

ideal filling level: 143- 250 mm

ideal volume: 2,300- 12,300 ml

The radial-flow impeller TR 21 has a total length of 400 mm and is made of stainless steel. Its stirrer shaft has a diameter of 8 mm.
