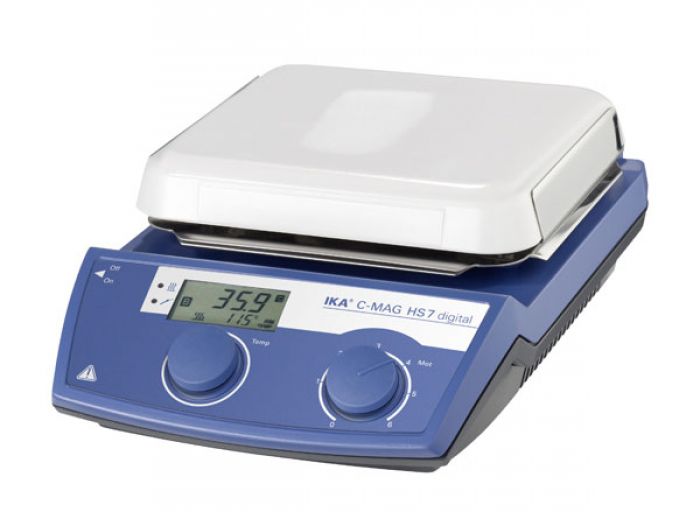

IKA C-Mag HS-7 Digital magneetroerder + verw. 10 liter 550°C
Art.Nr.
L033487000
Magneetroerder met verwarming
Digitaal instelbare temperatuur en toerental
Volume tot 10 l (H2O)
Temperatuur tot 550°C
Toerentalbereik 100 - 1500 rpm
Hot Top indicator waarschuwing bij heet oppervlak om brandwonden te voorkomen!
Exacte temperatuurinstelling via digitaal display (LED)
Opzetplaat afmetingen 180 x 180 mm
Afmetingen (lxbxh) 220 x 330 x 105 mm
Gewicht 5 kg
Levering inclusief PT1000 sensor
Digitaal instelbare temperatuur en toerental
Volume tot 10 l (H2O)
Temperatuur tot 550°C
Toerentalbereik 100 - 1500 rpm
Hot Top indicator waarschuwing bij heet oppervlak om brandwonden te voorkomen!
Exacte temperatuurinstelling via digitaal display (LED)
Opzetplaat afmetingen 180 x 180 mm
Afmetingen (lxbxh) 220 x 330 x 105 mm
Gewicht 5 kg
Levering inclusief PT1000 sensor
Merk | IKA |
---|---|
Max. volume per roerpositie (H2O) | 10 |
Min. RPM | 100 |
Max. RPM | 1.500 |
Max. Temperatuur | 550 |
IKA C-Mag HS-7 Digitaal magneetroerder met verwarming 10 liter
New magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 10 l (H2O)
- Simultaneous digital display of target and actual temperatures via LCD dispaly
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
- Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Digital error code display
- Elevated control panel for protection against leaking liquids
Technical data
Number of stirring positions | 1 |
Stirring quantity max. (H2O) | 10 l |
Motor rating input | 15 W |
Motor rating output | 1.5 W |
Speed display | scale |
Speed range | 100 - 1500 rpm |
Stirring bar length max. | 80 mm |
Heat output | 1000 W |
Heating rate (1 l H2O in h25) | 5 K/min |
Heating temperature range | 50 - 500 °C |
Heat control | LCD |
Heat control accuracy | 1 ±K |
Speed control | scale 0 - 6 |
Fixed safety circuit | 550 °C |
Connection for ext. temperature sensor | PT1000 |
Control accuracy with sensor | 0.5 ±K |
Temperature constancy in medium | 0.5 ±K |
Accuracy of temperature measurement | ±0.2 + tolerance PT1000 (DIN IEC 751 Class A) K |
Temperature measurement resolution | 0.1 K |
Self-heating of the hotplate (RT:22°C/duration:1h) | 28 °C |
Set-up plate material | ceramic |
Set-up plate dimensions | 180 x 180 mm |
Dimensions (W x H x D) | 215 x 105 x 330 mm |
Weight | 5 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 230 / 120 / 100 V |
Frequency | 50/60 Hz |
Power input | 1020 W |
