IKA C6000 Global Standard Package 1/10 standaard bom

IKA C6000 Global Standard Package 1/10 standaard bom

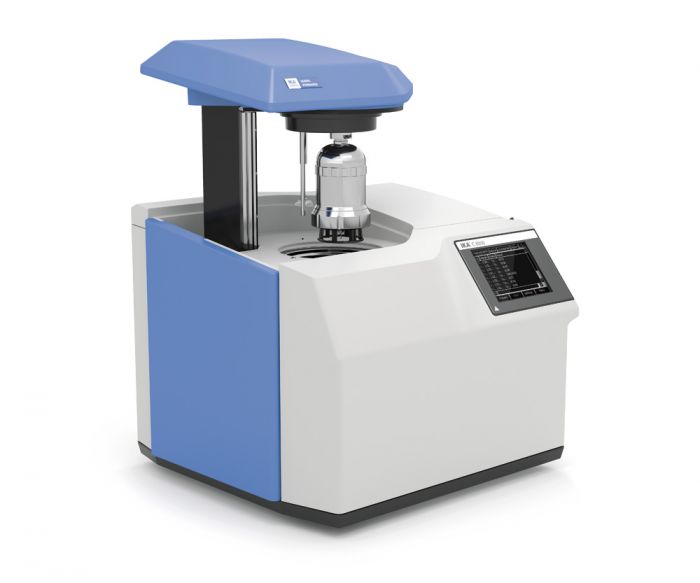

The C 6000 global standards oxygen bomb calorimeter combines modern technology, variability and automation (adiabatic, isoperibol; dynamic modes) in one instrument. It operates according to all bomb calorimeter standards, such as e.g. the DIN, ISO, ASTM, GOST and GB. The operator can choose between three different starting temperatures (22 ºC, 25 ºC, 30 ºC) in each measuring mode: adiabatic, isoperibol or dynamic. Due to the spherically shaped decomposition vessel head, the wall thickness was able to be reduced, allowing for faster heat transfer which results in a shorter time measurement. Due to the variety of different interfaces (PC, Ethernet, SD-card, balance, printer) this unit is easily adaptable depending on the customer’s specific application needs. Further adaption to data management and LIMS is possible with our calorimeter software C 6040 Calwin (Accessory).

• Automatic ignition
• Automatic water filling and draining
• Automatic oxygen filling, venting and flushing
• RFID technology for automatic decomposition vessel identification
• New design of the decomposition vessel allows for easier and faster sample preparation
• Can be operated with a chiller (e.g. KV 600)
• Easy and convenient touch screen operation
• Control chart view and correction calculation of globally used standards
• Ethernet interface for data management via FTP server or connection of a network printer
• Removable SD-card allows for easier data measurement management, in addition to software updates

The C 6000 global standards Package 1/10 consists of:

• C 6000 global standards

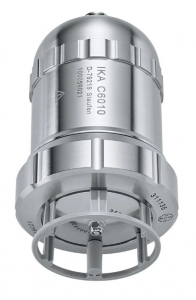

• C 6010 Decomposition vessel, standard
• Cooling water supply

Technical data

• Measuring range max. 40000 J
• Measuring mode adiabatic 22°C yes
• Measuring mode dynamic 22°C yes
• Measuring mode isoperibol 22°C yes
• Measuring mode adiabatic 25°C yes
• Measuring mode dynamic 25°C yes
• Measuring mode isoperibol 25°C yes
• Measuring mode adiabatic 30°C yes
• Measuring mode dynamic 30°C yes
• Measuring mode isoperibol 30°C yes
• Measurements/h adiabatic 5 Measurements/h dynamic 6
• Measurements/h isoperibol 4
• Reproducibility adiabatic (1g benzoic acid NBS39i) 0.05 %RSD
• Reproducibility dynamic (1g benzoic acid NBS39i) 0.15 %RSD
• Reproducibility isoperibol (1g benzoic acid NBS39i) 0.05 %RSD
• Touchscreen yes
• Working temperature min. 22 °C Working temperature max. 30 °C
• Temperature measurement resolution 0.0001 K
• Cooling medium temperature min. 12 °C Cooling medium temperature max. 27 °C Cooling medium permissible operating pressure 1.5 bar Cooling medium tap water Type of cooling flow Chiller KV600NR Flow rate min. 60 l/h Flow rate max. 70 l/h Rec. flow rate at 18°C 60 l/h
• Oxygen operating pressure max. 40 bar
•  Interface scale RS232 Interface printer USB Interface PC RS232 Interface test rack yes Interface ext. keyboard yes
• Oxygen filling yes Degasification yes Decomposition detection yes Decomposition vessel C 6010 yes
• Analysis according to DIN 51900 yes
• Analysis according to DIN EN ISO 1716 yes
• Analysis according to DIN EN ISO 9831 yes
• Analysis according to DIN EN 15170 yes
• Analysis according to DIN CEN TS 14918 yes
• Analysis according to ASTM D240 yes
• Analysis according to ASTM D4809 yes
• Analysis according to ASTM D5865 yes
• Analysis according to ASTM E711 yes
• Analysis according to ISO 1928 yes
• Analysis according to GB T213 yes
• Dimensions (W x H x D) 500 x 425 x 450 mm
• Weight 29 kg
• Permissible ambient temperature 20 - 25 °C Permissible relative humidity 80 %
• Protection class according to DIN EN 60529 IP 20 RS 232 interface yes USB interface yes
• Voltage 220 - 240 / 100 - 120 V Frequency 50/60 Hz
