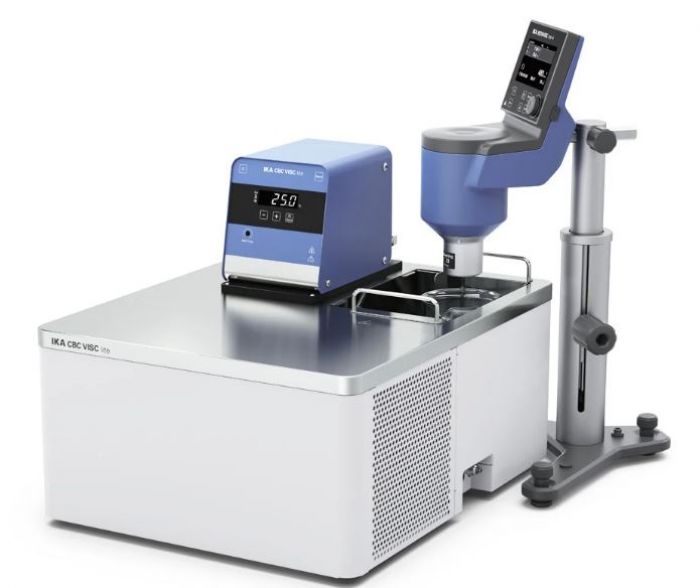

IKA CBC ROTAVISC lo-vi Package 6 mio mPas -25°C - 125°C
Art.Nr.
L030014045
IKA CBC ROTAVISC lo-vi Package 6 mio mPas -25°C - 125°C
Art.Nr.
L030014045
Complete Rotatie
viscositeitsmeter "
Geschikt voor het meten van viscositeit tot 6.000.000 mPas
Nauwkeurigheid 1 % Herhaalbaarheid 0,2 %
Rotatiesnelheid 0.01 - 200 tpm
Afmetingen (BxHxD) 351x629x372 mm
Gewicht 7.1 kg
Levering inclusief spindels SP set-1
Inclusief ROTASTAND
Inclusief CBC VISC lite koel/verwarm bad -25°C tot 125°C
Inclusief PT 100.8 temp. sensor
Installatie en uitleg op aanvraag
Geschikt voor het meten van viscositeit tot 6.000.000 mPas
Nauwkeurigheid 1 % Herhaalbaarheid 0,2 %
Rotatiesnelheid 0.01 - 200 tpm
Afmetingen (BxHxD) 351x629x372 mm
Gewicht 7.1 kg
Levering inclusief spindels SP set-1
Inclusief ROTASTAND
Inclusief CBC VISC lite koel/verwarm bad -25°C tot 125°C
Inclusief PT 100.8 temp. sensor
Installatie en uitleg op aanvraag
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
CBC ROTAVISC lo-vi Package
The viscosity of most liquids depends on the temperature. To obtain reliable measurement results, accurate temperature control is crucial. The CBC ROTAVISC lo-vi Package is the perfect solution for precise viscosity measurement of temperature-dependent samples in the laboratory.
The ready-to-connect package combines the ROTAVISC lo-vi rotational viscometer with the CBC VISC lite heating and cooling bath circulator. The sample is measured directly in the heating bath under controlled conditions.ROTAVISC lo-vi is a high-performance rotational viscometer for applications in a measuring range from 1 - 6,000,000 mPas.
The CBC VISC lite heating and cooling bath circulator was specially developed for use with IKA viscometers. It covers a temperature range from -25 °C to 125 °C and offers space for two standard beakers (600 ml). This allows a second sample to be pre-tempered during the measurement. Equipped with natural refrigerant R290, the CBC VISC lite is a sustainable and environmentally friendly alternative.
YOUR BENEFITS:
Save time: A second beaker (600 ml) can be pre-tempered during the measurement.Perfect results: Optimized water flow management in the insulated bath for fast and precise temperature control.Improved ecological footprint: Equipped with the environmentally friendly natural refrigerant R290.Flexible application: Thanks to the external pump connection, CBC VISC lite can also be used for heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakers.Easy to maintain: The easily removable and cleanable air filter guarantees optimum performance.Perfect compatibility and automation: ROTAVISC and CBC VISC lite are compatible with the labworldsoft® laboratory software, enabling easy automation, control and documentation of measurement results.
Scope of delivery
ROTAVISC lo-vi control
ROTASTANDCBC VISC lite
SP set-1
PT 100.8
The standard spindle set SP set-1 includes four spindles (SP1, SP2, SP3, SP4). It is particularly suitable for viscosity determination in combination with the IKA rotary viscometers
