IKA CBC5 Control circulatiethermostaat -20 tot 200°C

IKA CBC5 Control circulatiethermostaat -20 tot 200°C

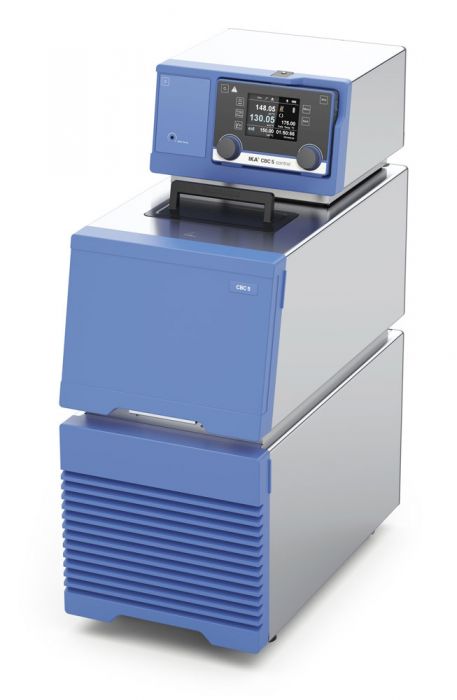

The CBC 5 control is a powerful refrigerated and heating circulator with strong heating and cooling power for an operating temperature range of - 25 °C to + 200 °C. It is best suited for external applications thanks to its proven pressure and suction pump. High-quality insulation of the device allows for fast heat-up times and reduces heat input at low temperatures. All parameters are manageable (read out, monitored and completely documented) by software (e. g., labworldsoft(r) or NAMUR commands).

High performance pressure/suction pump (speed-controlled)

Industry standard TFT display for maximum visibility (pump speed, temperature)

Adjustable safety circuitVisible and audible alarm

Safety drain valveUSB / RS 232 interfaces (labworldsoft(r) and enabling online updates of device software)

Connection for external temperature probe (PT 100) and optional external solenoid valves (multi-IO port

)Safety classification III (FL, DIN 12876)

Removable WiCo (wireless controller) enables safe remote operation, e.g. outside of a closed fume hood

Scope of delivery

CBC 5 control

Hose olive NW 12 (2 pcs.)

Screwdriver

OS 1.0 power supply (for WiCo)

USB Cable - USB A to Micro-B, 2 m

USB 2.0 cable Micro A – Micro B

WH10 WiCo Holder
