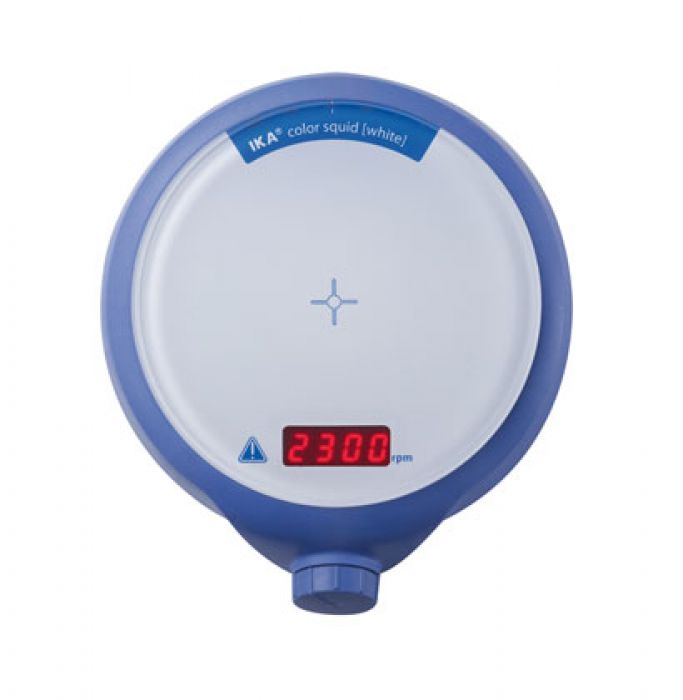

IKA Color Squid White magneetroerder zonder verwarming 1l

Art.Nr.

L033671000

Toerental 0 - 2.500 rpm met digitaal dispaly Afmeting roerplaat Ø 115 mm Maximale lengte roerflo 30 mm Afmetingen (bxhxd) 145 x 45 x 160 mm Gewicht 0,54 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	IKA
Max. volume per roerpositie (H2O)	1
Min. RPM	0
Max. RPM	2.500

Productbeschrijving

IKA Color Squid White magneetroerder zonder verwarming 1 liter

The improved small magnetic stirrers now in new designs.
new: Digital speed display (LED)
new: Electronically controlled motor for more capacity
new: Higher speed range from 0 - 2.500 rpm
new: Max. stirring quantity 1 l

Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
Recyclable materials

Technical data

Number of stirring positions	1
Stirring quantity max. (H2O)	1 l
Motor rating input	3 W
Motor rating output	2 W
Speed display	LED
Speed range	0 - 2500 rpm
Stirring bar length max.	30 mm
Set-up plate dimensions	Ø 115 mm
Dimensions (W x H x D)	145 x 45 x 160 mm
Weight	0.54 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
RS 232 interface	no
Analog output	no
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	4 W
DC Voltage	12 V=
Current consumption	300 mA
