IKA HBR 4 Contol water & oliebad 4 liter met magneetroerder
Art.Nr.
L030003549
IKA HBR 4 Contol water & oliebad 4 liter met magneetroerder
Art.Nr.
L030003549
Temperatuur KT - 200°C
Roersnelheid 150 - 800 rpm
Binnendiameter 200 mm, hoogte 160 mm
Vermogen 1000W
Afmetingen (bxhxd) 340 x 250 x 340 mm
Gewicht 4,4 kg
Wordt geleverd met een externe temperatuurvoeler PT1000.60
Roervlo niet inbegrepen
- HBR4 digital
| Merk | IKA |
|---|---|
| Max. volume per roerpositie (H2O) | 4 |
| Min. RPM | 150 |
| Max. RPM | 800 |
| Max. Temperatuur | 200 |

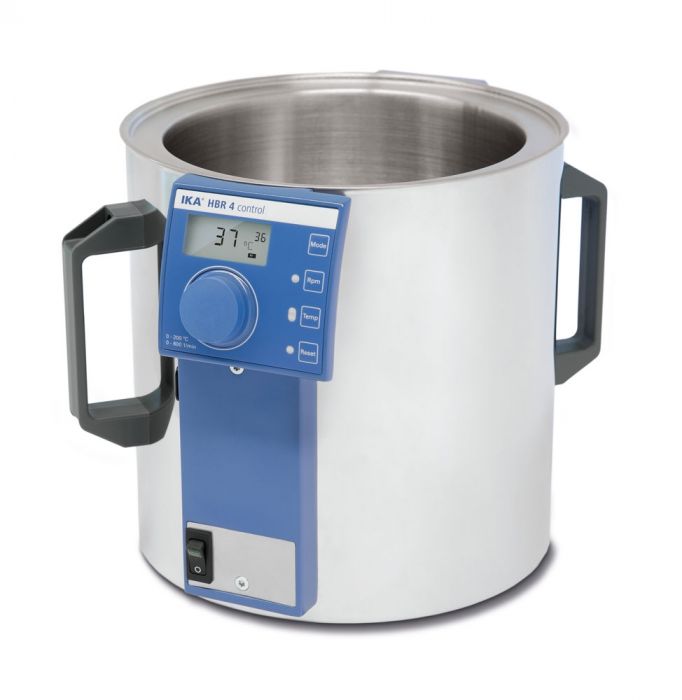

IKA HBR 4 Control water & oliebad 4 liter met magneetroerder
The heating bath is noted for:
- Cylindrical bath shape
- Heating elements integrated into the bath base
- Heat transfer media can be low-viscous oil (50 mPas) or water (H2O)
- Useful volume: approx. 4 l
- Heat output: 1000 W
- Two carry handles
- Infinitely variable safety temperature limiter according to DIN 12877
- Double-jacketed mantle protection against burns -
- Digital display for target, actual and safety temperatures as well as speed
- Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath
- RS 232 interface
The heating bath is delivered with an external temperature sensor PT 1000.60
Technical data
| Heat output | 1000 W |
| Heating temperature range | Room temp. - 200 °C |
| Heat control | stepless |
| Set temperature resolution | 1 ±K |
| Controller oscillation (3 l water / 90 °C) | 1 ±K |
| Controller oscillation (3l Silicone oil / 50mPas / 150°C) | 2 ±K |
| Speed display | LCD |
| Speed control | stepless |
| Speed range | 150 - 800 rpm |
| Motor rating input | 5 W |
| Motor rating output | 1 W |
| Filling volume max. | 4 l |
| Filling point min. | 20 mm |
| Material in contact with medium | stainless steel 1.4301 |
| Adjustable safety circuit min. | 50 °C |
| Adjustable safety circuit max. | 210 °C |
| Safety class DIN 12877 | II |
| Outer diameter | 250 mm |
| Inner diameter | 200 mm |
| Outer height | 250 mm |
| Inner height | 160 mm |
| Dimensions (W x H x D) | 340 x 250 x 340 mm |
| Weight | 4.4 kg |
| Permissible ambient temperature max. | 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 1020 W |
