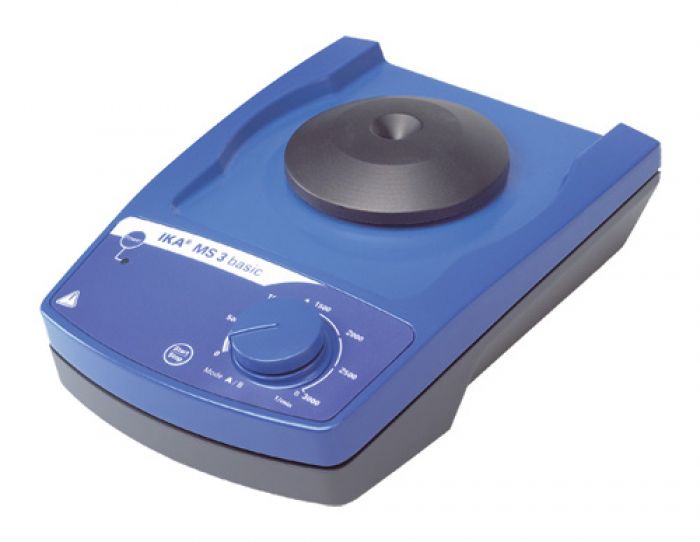

IKA MS3 basic orbitaal schudder 4,5mm 0,5kg
Art.Nr.
L033617000

IKA MS3 basic orbitaal schudder 4,5mm 0,5kg

Art.Nr.
L033617000
Orbitale schudbeweging amplitude 4,5 mm
Schudder belastbaar tot 0,5 kg
Toerental 0 - 3000 rpm
Afmetingen (lxbxh) 148 x 205 x 63 mm
Gewicht 2,9 kg
Levering inclusief opzet voor 1 buis
Opzet voor microtiterplaten optioneel
Bekijk alle specificaties
Opvolger van...
Specificaties
Specificaties
Merk IKA
Schudbeweging orbitaal
Schudgewicht in kg 0,5
Temperatuur Kamertemperatuur
Min. RPM 0
Max. RPM 3.000
Productbeschrijving

IKA MS3 basic mini schudder

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

  • Wide range of attachments
  • Attachment detection
  • Continuous or touch operation (with standard attachment)
  • Two operating modes:

Mode A (safe mode with attachment detection)
the maximum speed of 3.000 rpm is only reached with the standard attachment in
touch mode. When using other attachments the speed is limited to 1.300 rpm.
Mode B (without attachment detection)
a speed of 3000 rpm is possible with all attachments, depending on the application (see the speed range of the accessory list)

  • Stable in all speed ranges
  • Sturdy zinc die cast casing

Technical data

Type of movement orbital
Shaker diameter 4.5 mm
Permissible shaking weight (incl. attachment) 0.5 kg
Motor rating input 10 W
Motor rating output 8 W
Permissible ON time 100 %
Speed min (adjustable) 200 rpm
Speed range 0 - 3000 rpm
Speed display scale
Operating mode continuous operation
Touch function yes
Working with microtiter plates yes
Number of microtiter plates 1
Dimensions (W x H x D) 148 x 63 x 205 mm
Weight 2.9 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 20 W
DC Voltage 24 V=
Current consumption 800 mA
