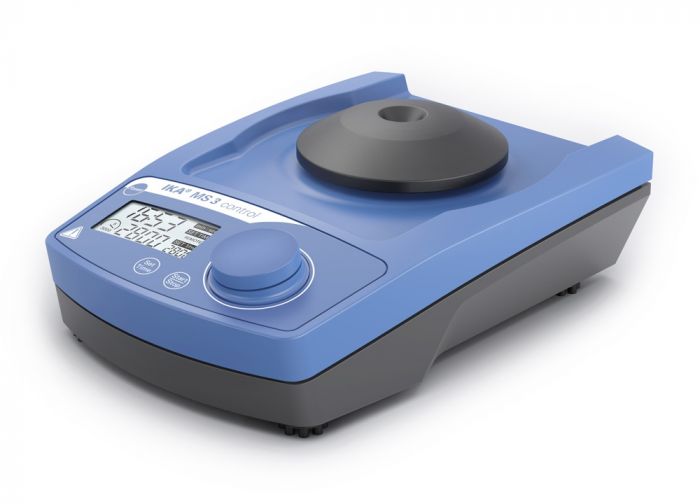

IKA MS3 control orbitaal schudder 4,5mm 0,5kg
Art.Nr.
L030016017
IKA MS3 control orbitaal schudder 4,5mm 0,5kg
Art.Nr.
L030016017
Orbitale schudbeweging amplitude 4,5 mm
Schudder belastbaar tot 0,5 kg
Toerental 0 - 3000 rpm digitaal instelbaar
Afmetingen (lxbxh) 148 x 205 x 63 mm
Gewicht 2,9 kg
Levering inclusief opzet voor 1 buis
Opzet voor microtiterplaten optioneel
- IKA MS2
| Merk | IKA |
|---|---|
| Schudbeweging | orbitaal |
| Schudgewicht in kg | 0,5 |
| Temperatuur | Kamertemperatuur |
| Min. RPM | 0 |
| Max. RPM | 3.000 |
IKA MS3 control orbitaal schudder 4,5mm 0,5kg
Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates
- Wide range of attachments
- Attachment detection
- Timer with countdown function
- Stable in all speed ranges
- Sturdy zinc die cast casing
- USB connection for remote control
- Continuous or touch operation (with standard attachment)
Two operating modes:
Mode A (safe mode with attachment detection):
The maximum speed of 3,000 rpm is only reached with the standard attachment in touch mode. When using other attachments the speed is limited to 1,300 rpm.
Mode B (without attachment detection):
A speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual).
Technical data
| Type of movement | orbital |
| Shaker diameter | 4.5 mm |
| Permissible shaking weight (incl. attachment) | 0.5 kg |
| Motor rating input | 10 W |
| Motor rating output | 8 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 100 rpm |
| Speed range | 100 - 3000 rpm |
| Speed display | LCD |
| Speed deviation | 1 % |
| Timer | yes |
| Timer display | LCD |
| Time setting min. | 1 s |
| Time setting max. | 3599 min |
| Operating mode | timer and continuous operation |
| Touch function | yes |
| Working with microtiter plates | yes |
| Number of microtiter plates | 1 |
| Dimensions (W x H x D) | 148 x 63 x 205 mm |
| Weight | 2.9 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 20 W |
| DC Voltage | 24 V= |
| Current consumption | 800 mA |
