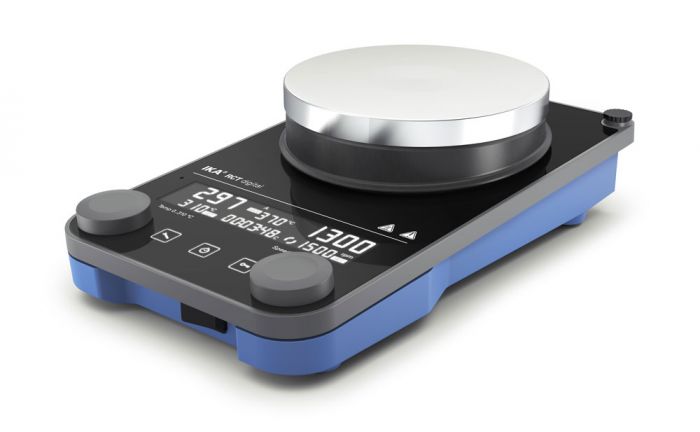

IKA Plate RCT digital magneetroerder + verw. 20l
Art.Nr.
L035004601
IKA Plate RCT digital magneetroerder + verw. 20l
Art.Nr.
L035004601
Met verwarming, digitaal instelbare temperatuur en toerental
Volume tot 20 liter (H2O)
Temperatuur van verwarmingsplaat 0 - 310°C
Optie aansluiting thermometer ETS-D5 voor nauwkeurige temperatuurregeling medium
Gepolijst aluminium verwarmingsplaat voor optimale warmteoverdracht
Verbeterde magneetveld voor roervlo
Toerental 50 - 1500 rpm
Diameter opzetplaat 135 mm
Afmetingen (lxbxh) 160 x 270 x 85 mm
Gewicht 2,4 kg
Volume tot 20 liter (H2O)
Temperatuur van verwarmingsplaat 0 - 310°C
Optie aansluiting thermometer ETS-D5 voor nauwkeurige temperatuurregeling medium
Gepolijst aluminium verwarmingsplaat voor optimale warmteoverdracht
Verbeterde magneetveld voor roervlo
Toerental 50 - 1500 rpm
Diameter opzetplaat 135 mm
Afmetingen (lxbxh) 160 x 270 x 85 mm
Gewicht 2,4 kg
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
IKA Plate RCT digitaal magneetroerder + verwarming 20 liter
The IKA Plate (RCT digital) has a round top made of aluminum alloy. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm.
Strongly standing by its product and technology, IKA is offering a lifetime warranty on the magnetic stirrer – unparalleled in the industry; scientists can focus on their experiments with a reliable stir plate.
Some of the features are: IKA emphasizes ease-of-use by design simplicity: reduced forms and operating elements meet the modernity of smartphones: IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The IKA Plate (RCT digital) improves over time with regular firmware updates. Using Alnico magnetic technology, the IKA Plate (RCT digital) achieves excellent temperature stability and high residual induction. It also provides for maximum vortex. The integrated timer and counter function supports the control of kinetics and sensitive reactions; the IKA SmartTemp® function protects users intelligently and predictably.
PT 1000.60 temperature sensor included in the scope of delivery.
Technical data
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 20 l |
| Motor rating output | 9 W |
| Direction of rotation | right / left |
| Speed display set-value | LCD |
| Speed display actual-value | LCD |
| Speed control | Turning knob |
| Speed range | 50 - 1500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring bar length | 30 - 80 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 13 +K |
| Heat output | 600 W |
| Temperature display set-value | LCD |
| Temperature display actual-value | LCD |
| Temperature unit | °C / °F |
| Heating temperature range | Room temp. + device self heating - 310 °C |
| Heat control | Turning knob |
| Temperature setting range | 0 - 310 °C |
| Temperature setting resolution of heating plate | 1 K |
| Connection for ext. temperature sensor | PT1000, ETS-D5, ETS-D6 |
| Temperature setting resolution of medium | 1 K |
| Adjustable safety circuit | 50 - 370 °C |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions | Ø 135 mm |
| Automatic reverse rotation | yes |
| Intermittend mode | yes |
| Viscosity trend measurement | yes |
| Timer | yes |
| Sensor in medium detection (Error 5) | yes |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | 2 ±% |
| Heating rate (1l H2O in h2500) | 6.5 K/min |
| Heat control accuracy of heating plate (at 100°C) | 5 ±K |
| Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.5 ±K |
| Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.5 ±K |
| Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | 0.2 ±K |
| Dimensions (W x H x D) | 160 x 85 x 270 mm |
| Weight | 2.4 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 220 - 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 650 W |
| Power input standby | 1.6 W |
