IKA R1389 propellerroerder

Art.Nr.

L032343600

3-vleugels PTFE gecoat
Geschikt voor verschillende bovenroerder
Roerder diameter 58 mm
Asdiameter 8 mm
Aslengte 350 mm
Snelheid max. 800 rpm

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

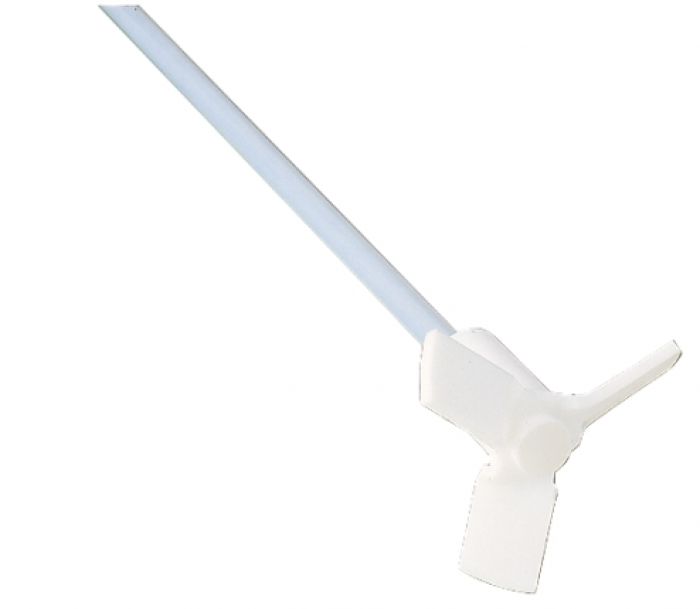

R 1389 (PTFE-coated) Propeller stirrer, 3-bladed

PTFE-coated stirring element, 3-blade. For drawing the material to be mixed from top to bottom. Local shear forces. Generates an axial flow in the vessel. For use at medium to high speeds. A stainless steel core is visible at the top and can be inserted into the chuck.

Stirrer Ø: 58 mm

Shaft Ø: 8 mm (Ø stainless steel core: 6 mm)

Shaft length: 350 mm (length of revealed part: 30 mm from top)
