IKA R2723 H-statief 62 - 101 cm hoog

Art.Nr.

L031412100

In hoogte verstelbaar Geschikt voor bovenroeders en Ultra Turrax Hoogte 620 - 1010 mm Staafdiameter 34 mm Voet 460 x 420 mm afstand tussen de poten 35 cm Maximaal gewicht 10 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

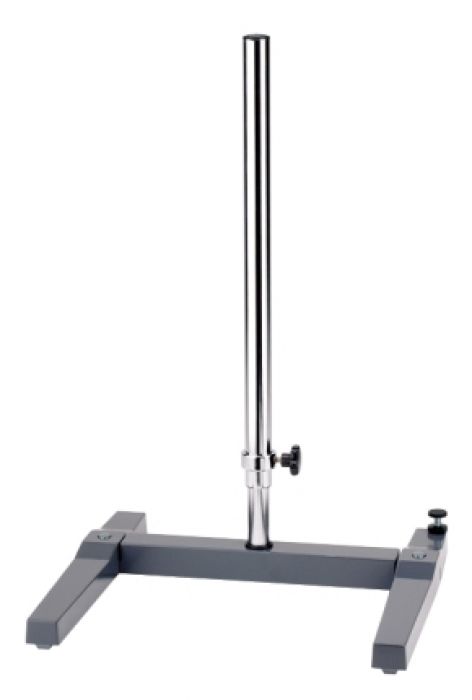

IKA H-statief R2723 in hoogte verstelbaar

Particularly stable stand with H-shape base which prevents the stand from tipping backwards.
Additionally equipped with a pneumatic spring stand rod, which enables heavy instruments/ attachments to be raised and lowered smoothly without difficulty, e.g. with rheological measurements using overhead stirrers. The stand has an adjustment screw which can be used to compensate for an uneven laboratory table surface.

Diameter of support rod: 34 mm
Dimensions (W x D): 460 x 420 mm
Height: 620 - 1.010 mm
Max. load: 10 kg
Stroke 390 mm

Technical data

Stroke max.	390 mm
Diameter	34 mm
Dimensions (W x H x D)	460 x 1010 x 420 mm
Weight	5.1 kg
