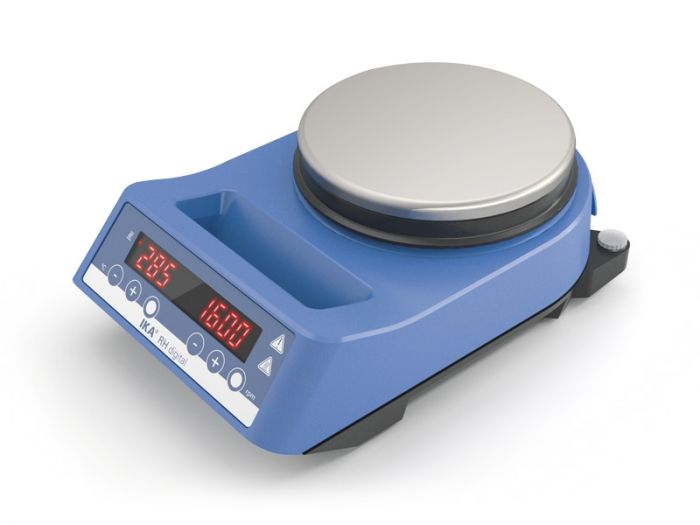

IKA RH digital magneetroerder + verwarming 15 liter 370°C

IKA RH digital magneetroerder 15 liter 370°C

Innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. A high heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.

• Digital display of temperature and speed
• Soft-start of stirring motor
• Strong magnetic field and wide speed range for volumes up to 15 liters
• Error code display
• Easy operation with touch keypad

Technical data

• Stirring bar length max.: 80mm
• Depth: 250mm
• Heating temperature min.: 50°C
• Stirring quantity max. per stirring position (H2O): 15l
• Heat output: 600W
• Height: 100mm
• Heating temperature max.: 320°C
• Permissible relative humidity: 80%
• Frequency: 50/60Hz
• Speed max.: 2000rpm
• Speed min.: 100rpm
• Adjustable safety circuit max.: 360°C
• Set-up plate dimensions: Ø 135mm
• Temperature setting range max.: 320°C
• Weight: 2.8kg
• Power input: 620W
• Voltage: 230/115/100V
• Temperature setting range min.: 50°C
• Adjustable safety circuit min.: 100°C
• Self-heating of the hotplate by max. stirring (RT:22°C/duration:1h): 28+K
• Stirring bar length min.: 20mm
• Width: 160mm
• Heating rate heating plate: 6K/min
• Permissible ambient temperature max.: 40°C
• Permissible ambient temperature min.: 5°C
• pH measurement: no
• Intermittend mode: no
• Graph function: no
• Programs: no
• Sensor in medium detection (Error 5): no
• Automatic reverse rotation: no
• Speed display set-value: LED Timer: no
• Weighing function: no
• Viscosity trend measurement: no
• Break detection stirring bar: no
• RS 232 interface: no
• Analog output: no
• Temperature unit: °C
• Heat control: Button
• Speed control: Button
• Motor rating output: 2W
• Temperature display set-value: LED
• Direction of rotation: left
• USB interface: no
• Protection class according to DIN EN 60529: IP 21
• Set-up plate material: stainless steel 1.4301
• Connection for ext. temperature sensor: ETS-D5
• Number of stirring positions: 1
