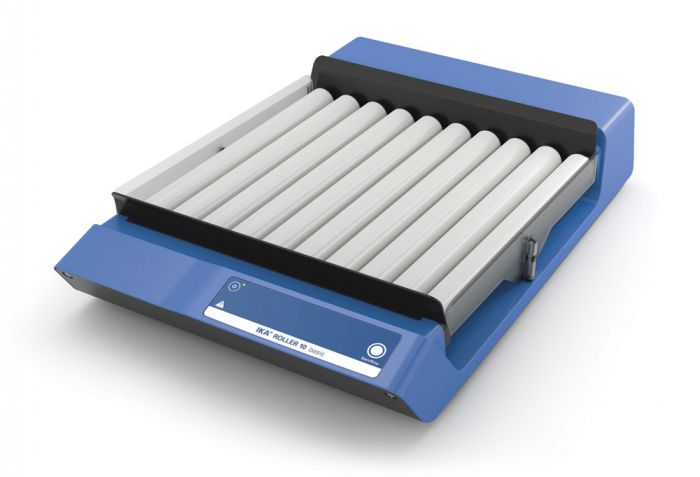

IKA Roller 10 basic rollenbank met 10 rollen

Art.Nr.

L034012000

Toerental 30 rpm
Afmetingen (lxbxh) 545 x 380 x 115 mm
Gewicht 7 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	IKA
Schudbeweging	rollen
Schudgewicht in kg	1
Temperatuur	Kamertemperatuur
Min. RPM	30
Max. RPM	30

Productbeschrijving

IKA Roller 10 basic rollerbank met 10 rollen

Roller shaker with 10 rolls provides smooth rocking and rolling action at a fixed speed. Used for mixing blood samples, solid and liquid suspensions and viscous samples. The unit can be used with all conventional tubes and cylindrical bottles. Easily removable attachments provide for quick cleaning in case of sample spills.

Usable at 4 to 50 °C in incubators
Suitable for continuous operation
Removable rolls enable shaking of larger tubes
Easy operation with touch keypad

Technical Data

Type of movement	rolling
Permissible ON time	100 %
Speed min.	0 rpm
Speed fix	30 rpm
Speed display	none
Timer	no
Timer display	none
Operating mode	continuous operation
Touch function	no
Shaking table lock	no
Rolls, number	10
Rolls, Ø	32 mm
Rolls, length	327 mm
Working area length	350 mm
Rolls, luffing angle fixed	3 °
Rolls, max stroke at roll end	16 mm
Rolls, changeable, removable	yes
Unit stackable	yes
Dimensions (W x H x D)	380 x 115 x 545 mm
Weight	6 kg
Permissible ambient temperature	4 - 50 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
USB interface	no
RS 232 interface	no
Analog output	no
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	24 W
DC Voltage	24 V=
Current consumption	1000 mA
