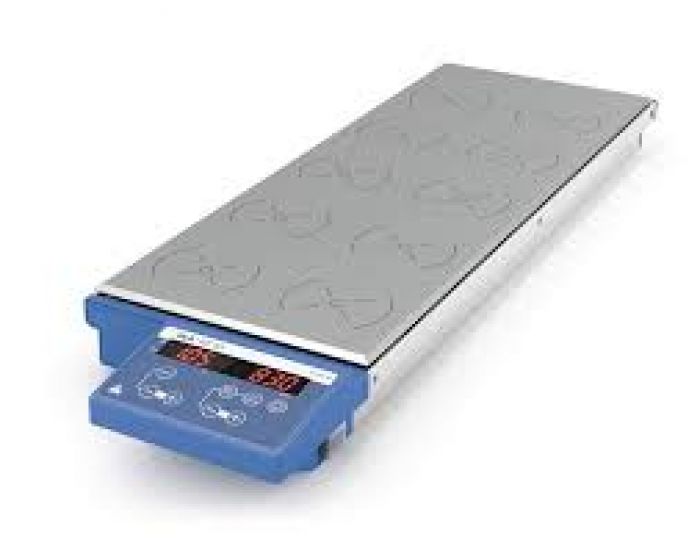

IKA RT10 magneetroerder met verwarming 10 x 400 ml
Art.Nr.
L033691100
IKA RT10 magneetroerder met verwarming 10 x 400 ml
Art.Nr.
L033691100
Met verwarming en LED display
Geschikt voor 10 x 0,4 liter
Toerental 0 - 1000 rpm
Voltage: 230 V
Maximum temperatuur: 120 graden
Vermogen verwarmingsunit: 375 W
Temperatuurnauwkeurigheid: 1 K
Maximale beschikbare diameter per positie: 90 mm
Gewicht: 7.5 kg
Afmetingen (BxHxD) 190 x 60 x 610 mm
Geschikt voor 10 x 0,4 liter
Toerental 0 - 1000 rpm
Voltage: 230 V
Maximum temperatuur: 120 graden
Vermogen verwarmingsunit: 375 W
Temperatuurnauwkeurigheid: 1 K
Maximale beschikbare diameter per positie: 90 mm
Gewicht: 7.5 kg
Afmetingen (BxHxD) 190 x 60 x 610 mm
| Merk | IKA |
|---|---|
| Max. volume per roerpositie (H2O) | 0,40 |
| Min. RPM | 0 |
| Max. RPM | 1.000 |
| Max. Temperatuur | 120 |
IKA RT10 magneetroerder met verwarming 10 x 400 ml
10-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic
coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes.
- Homogeneous temperature distribution across the heating plate
- Adjustable reverse operation
- Eco-mode for a low self-warming of the surface
- Wear free magnetic coils
- Error code display
- Easy operation with touch keypad
- Suitable for continuous operation
- Speed range: 0 - 1000 rpm
Technical data
| Number of stirring positions | 10 |
| Stirring position distance | 90 mm |
| Speed deviation of individual stirring positions | 0 % |
| Speed control | 10 RPM Steps |
| Speed range | 0 - 1000 rpm |
| Stirring bar length min. | 25 mm |
| Stirring bar length max. | 30 mm |
| Heat output | 375 W |
| Heating temperature range | Room temp. - 120 °C |
| Heat control | LED |
| Heating rate heating plate | 3 K/min |
| Adjustable safety circuit min. | 50 °C |
| Adjustable safety circuit max. | 150 °C |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions | 180 x 495 mm |
| Dimensions (W x H x D) | 190 x 60 x 610 mm |
| Weight | 7.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 410 W |
