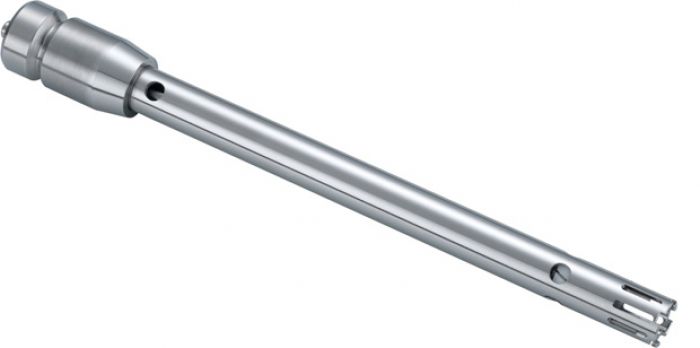

IKA S10N-10G schacht voor Ultra-Turrax T10
Art.Nr.
L033370100

IKA S10N-10G schacht voor Ultra-Turrax T10

Art.Nr.
L033370100
Volume 1 tot 100 ml
Stator diameter 10 mm
Dompeldiepte min. 20 mm
Dompeldiepte max. 100 mm
Aslengte 115 mm
Materiaal in contact met het medium PTFE en AISI 316L
Bekijk alle specificaties
Specificaties
Specificaties
Merk IKA
Afscheider zuigzijde Nee
Condenser uitlaat Nee
Productbeschrijving

IKA S10N-10G schacht voor Ultra-Turrax T10

Technical data

Volume range min. (H2O) 0.001 l
Volume range max. (H2O) 0.1 l
Stator diameter 10 mm
Rotor diameter 7.6 mm
Gap between rotor and stator 0.2 mm
Circumferential speed max. 11.9 m/s
Immersion depth min. 20 mm
Immersion depth max. 100 mm
Shaft length 115 mm
Material in contact with medium PTFE, AISI 316L
pH min. 2
pH max. 13
Suitable for solvents yes
Suitable for abrasive substances yes
Working temperature max. 180 °C
Sterilization methods all methods
Ultimate fineness, suspensions min. 5 µm
Ultimate fineness, suspensions max. 25 µm
Ultimate fineness, emulsions min. 1 µm
Ultimate fineness, emulsions max. 10 µm
