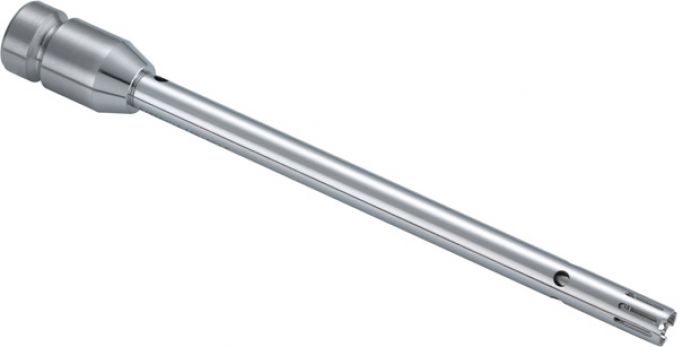

IKA S10N-8G schacht voor Ultra-Turrax T10

Specificaties

Specificaties

Merk	IKA
Afscheider zuigzijde	Nee
Condenser uitlaat	Nee

Productbeschrijving

IKA S10N-8G schacht voor Ultra-Turrax T10

S 10 N - 8 G Dispersing tool

Suitable for dispersing instrument T 10 basic and T 10 standard
Working range: 1 - 50 ml
Stator diameter: 8 mm
Immersion depth: 20 - 95 mm
Materials in contact with medium: PTFE, AISI 316L
Suitable for solvents: yes
Max. temperature: 180 °C
Sterilization methods: all methods

Technical data

Volume range min. (H2O)	0.001 l
Volume range max. (H2O)	0.050 l
Stator diameter	8 mm
Rotor diameter	6.1 mm
Gap between rotor and stator	0.25 mm
Circumferential speed max.	9.6 m/s
Immersion depth min.	20 mm
Immersion depth max.	95 mm
Shaft length	115 mm
Material in contact with medium	PTFE, AISI 316L
pH min.	2
pH max.	13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	180 °C
Sterilization methods	all methods
Ultimate fineness, suspensions min.	5 µm
Ultimate fineness, suspensions max.	25 µm
Ultimate fineness, emulsions min.	1 µm
Ultimate fineness, emulsions max.	10 µm

Accessoires

1.

   IKA T10 Basic Ultra Turrax 0,0005 - 0,1 liter
