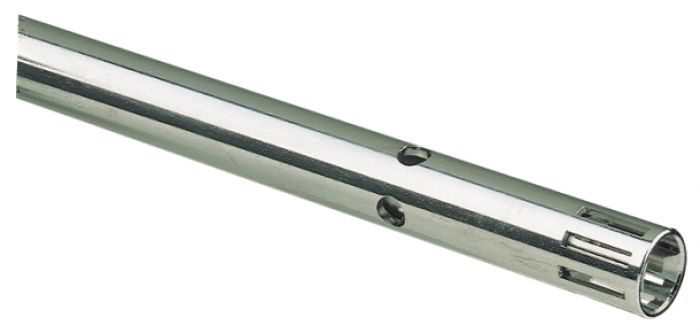

IKA S25N - 8G schacht voor ultra-turrax T25
Art.Nr.
L031024200
IKA S25N - 8G schacht voor ultra-turrax T25
Art.Nr.
L031024200
Volume 1 tot 50 ml (H2O)
Stator diameter 8 mm
Lengte 108 mm
Materiaal in contact met medium PTFE, AISI 316L
Stator diameter 8 mm
Lengte 108 mm
Materiaal in contact met medium PTFE, AISI 316L
| Merk | IKA |
|---|---|
| Afscheider zuigzijde | Nee |
| Condenser uitlaat | Nee |
IKA S 25 N - 8 G Dispersing element
- Suitable for dispersing instrument T 25 digital
- Working range: 1 - 50 ml
- Stator diameter: 8 mm
- Immersion depth: 27 - 85 mm
- Materials in contact with medium: PTFE, AISI 316L
- Suitable for solvents
- Max. temperature: 180 °C
- Sterilization methods: all methods
Technical Data
| Volume range min. (H2O) | 0.001 l |
| Volume range max. (H2O) | 0.050 l |
| Stator diameter | 8 mm |
| Rotor diameter | 6.1 mm |
| Gap between rotor and stator | 0.25 mm |
| allowable Speed max. | 25000 rpm |
| Circumferential speed max. | 8.0 m/s |
| Immersion depth min. | 27 mm |
| Immersion depth max. | 85 mm |
| Shaft length | 108 mm |
| Material in contact with medium | PTFE, AISI 316L |
| pH min. | 2 |
| pH max. | 13 |
| Suitable for solvents | yes |
| Suitable for abrasive substances | yes |
| Working temperature max. | 180 °C |
| Sterilization methods | all methods |
| Ultimate fineness, suspensions min. | 10 µm |
| Ultimate fineness, suspensions max. | 50 µm |
| Ultimate fineness, emulsions min. | 1 µm |
| Ultimate fineness, emulsions max. | 10 µm |
