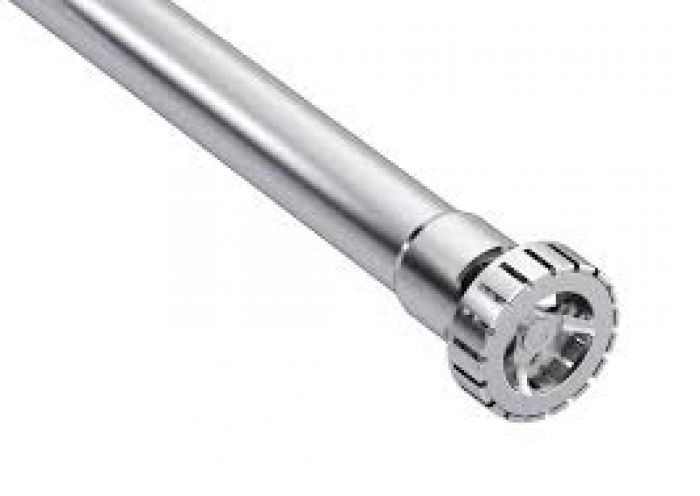

IKA S50KD - G45M schacht voor ultra-turrax T50

Art.Nr.

L030000630

Met kogellagering volume 0.5 tot 15 liter
Diameter stator 45 mm
Lengte 300 mm
Materiaal FFPM, PTFE, AISI316L

Download de PDF

Specificaties

Productbeschrijving

S 50 KD - G45M Dispersing tool

Dispersing tool for the disperser T 50 digital

Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring

Product-touching material: AISL 316L, PTFE, FFKM

Suitable for solvents: Yes

Sterilizable: all methods (except ball bearing)

Suitable for vacuum: Yes

Max. working temperature [°C]: 150

Shaft length [mm]: 300

Diameter stator/rotor [mm]: 45/40.5

Gap between [mm]: 0.25

Recommend emersion depth [mm]: 70 - 260

Recommend working range [ml]: 500 - 15,000
