Kirsch FROSTER LABEX 330 PRO-ACTIVE ATEX vrieskast -30°C 300 liter

Art.Nr.

L22110330

Temperatuurbereik -5 to -30°C Met circulatiekoeling ATEX- 94/9/EG conformity TÜV certified RS485 interface voor documentatie via PC Kompleet met 4 roosters Energieverbruik 4,58 KW / 24 h Afmetingen intern (bxdxh) 595 x 410 x 950 mm Gewicht 112 kg

Bekijk alle specificaties

Download de PDF

Specificaties

Specificaties
Merk	Kirsch
Toepassing vriezer	Explosieveilig (ATEX114)
Type	Vrieskast
Geschikt voor ladesysteem	Ja
Temperatuur	-20/30°C
Volume	300 liter
Doorvoer	Nee

Productbeschrijving

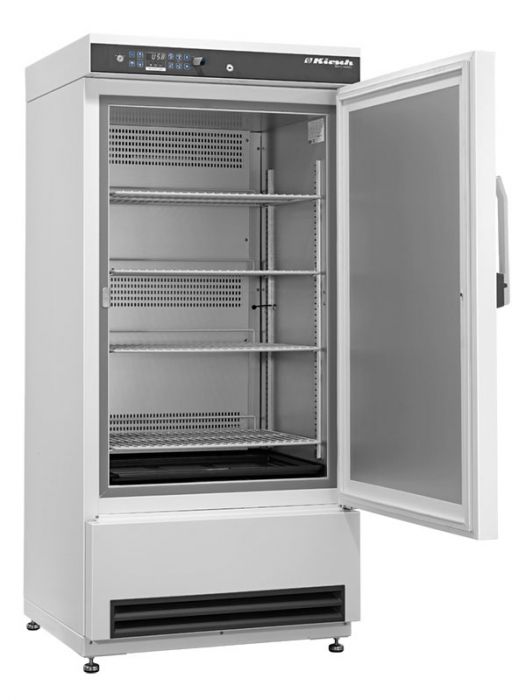

Kirsch FROSTER-LABEX-330 ATEX vrieskast 300 liter

This laboratory freezer features re-circulating air cooling, a rapid defrosting system and a quick-freeze function. The unit also features an explosion-proof interior according to the guideline 94/9/EG (ATEX 95). 4 plastic-coated shelves on mountings are fitted as standard. The shelves can optionally rest on telescopic runner. Besides this standard option wire baskets on runners are also available.

4 shelves, height-adjustable

Re-circulating air cooling

Explosion proof interior (LABEX®-Intrinsic Safety)

ATEX- 94/9/EG conformity TÜV certified

Optimized ventilation plates to minimize interior temperature differences

Automatic defrosting

Meltwater tray for manual emptying

Rapid freezing cycle

Easy-to-read LED temperature display

Easy accessible control panel with key switch

Micro-processor controlled temperature and thawing regulation to maximize temperature stability

Minimum/maximum temperature memory

Optical and acoustical alarm

RS-485 interface for computer based temperature documentation

Potential free contact for alarm transmission

Technicla data

Capacity	300 l
Temperature setting (approx.)	-5 to -30 °C
Voltage	220 - 240 V
Frequency	50 Hz
Power draft	540 Watts
Average consumption	3,98 KW / 24 h
Overall dimensions (incl. distance from wall)	74 x 78 x 159 (w x d x h in cm)
Interior dimensions	59 x 52 x 95 (w x d x h in cm)
Usable dimensions	57 x 42 x 82 (w x d x h in cm)
Overall dimensions with door opened at 90°	74 x 142 (w x d in cm)
Shelf dimensions	57 x 42 (w x d in cm)
Max. loading capacity per shelf	40 kg
Weight	120 kg / 135 kg (net / gross)
